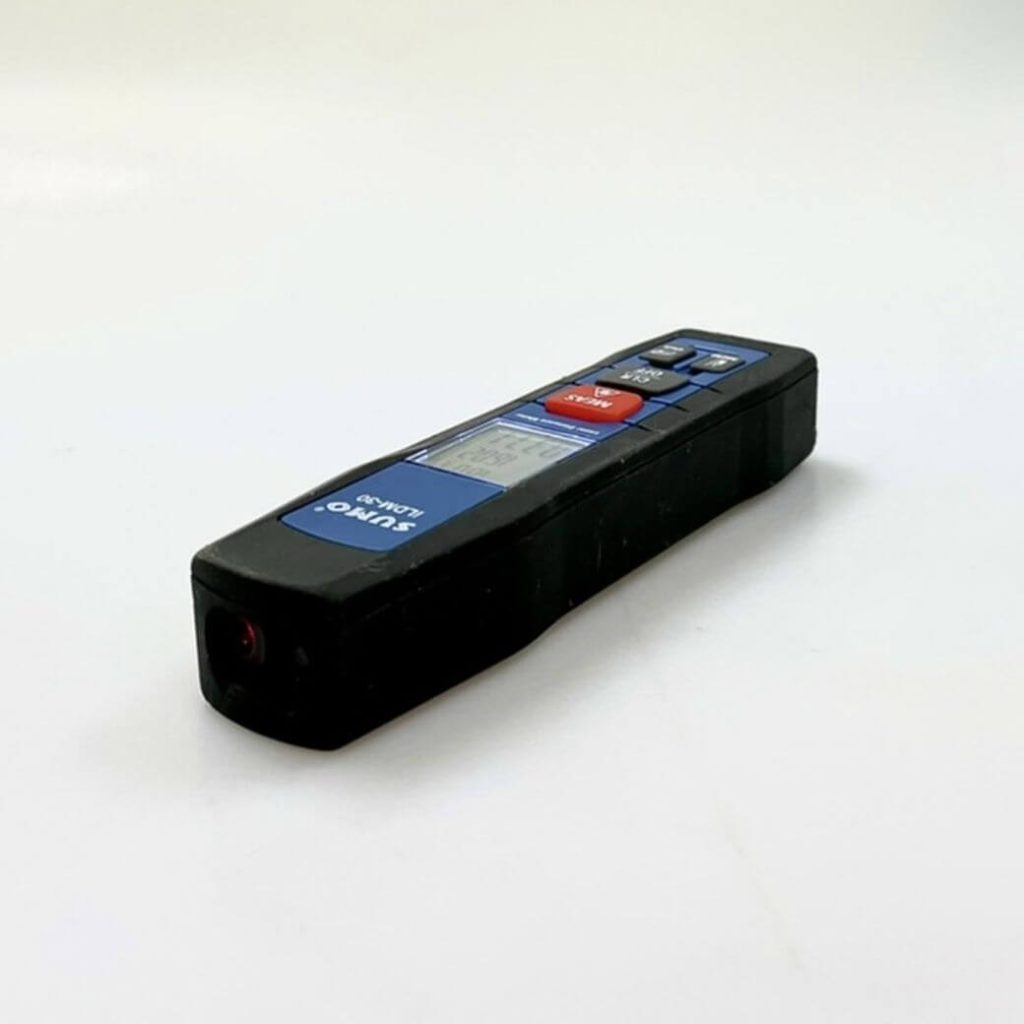

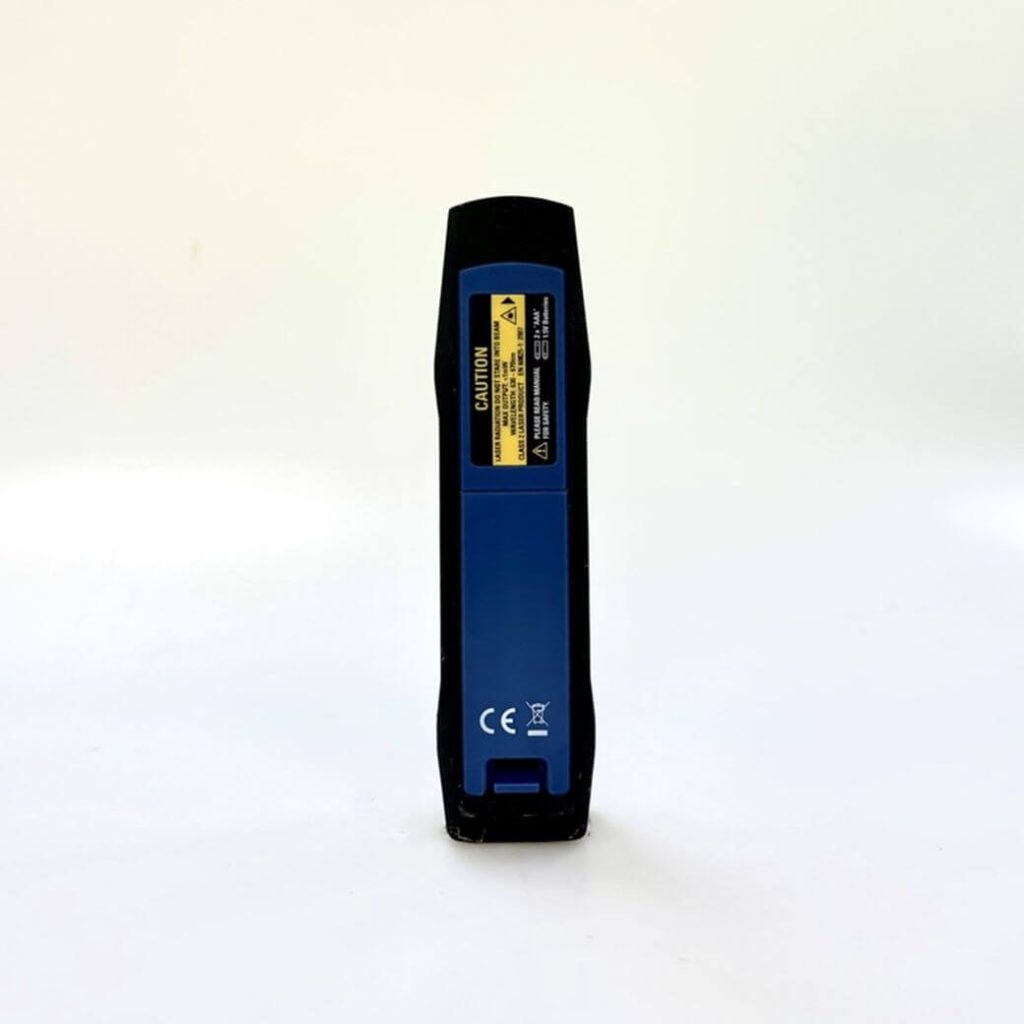

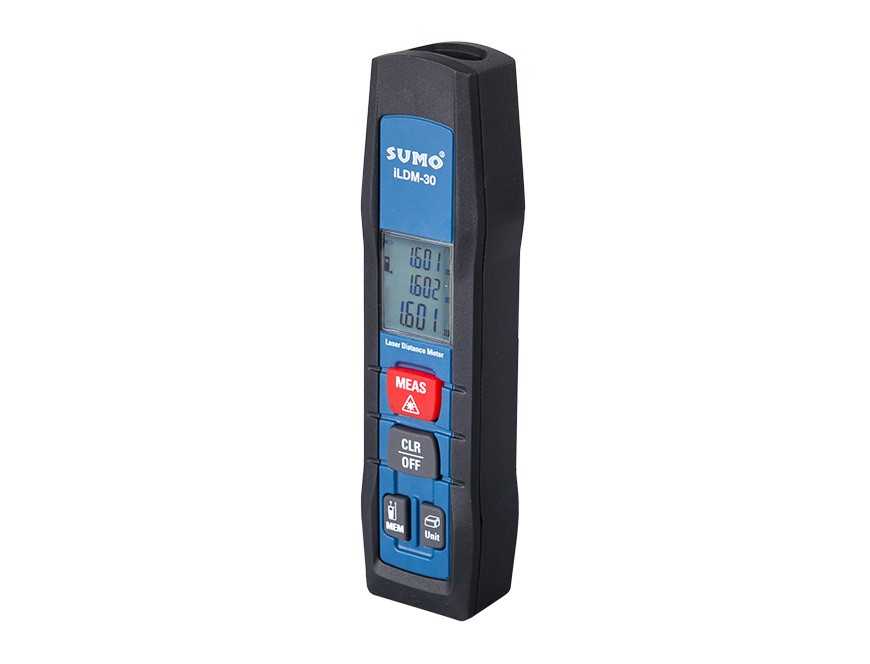

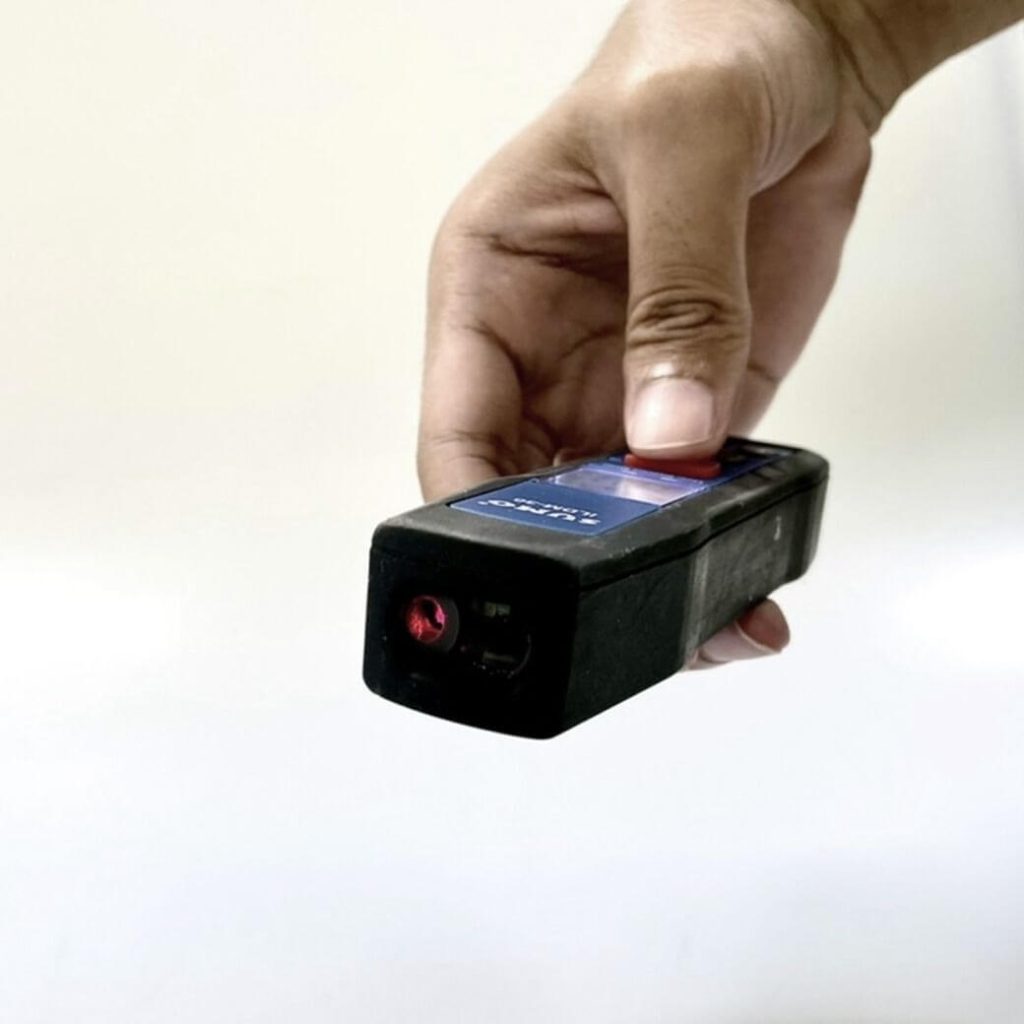

เครื่องวัดระยะเลเซอร์ รุ่น iLDM-30

3,700.00฿

 เครื่องวัดระยะเลเซอร์ รุ่น iLDM-30 กะทัดรัด วัดเร็ว ใช้งานสะดวก
Laser distance meter Smart and fast measurement, high accuracy.

*สนใจสอบถามเพิ่มเติม 082-078-5222

อีเมล. s.t.inter@hotmail.com Line. ooxzy



รายละเอียดเพิ่มเติม





เครื่องวัดระยะเลเซอร์



เครื่องวัดระยะด้วยเลเซอร์แบบปากกาออกแบบเพื่อการใช้งานในอาคารโดยเฉพาะ ใช้งานง่าย แม้ในพื้นที่แคบ ความแม่นยำสูงดีไซน์ใหม่ขนาดกระทัดรัด พกพาสะดวก ประกอบด้วยหลายฟังก์ชันมีปุ่มเฉพาะสำหรับการคำนวณพื้นที่ และการคำนวณปริมาตรทำให้การคำนวณเป็นเรื่องง่ายและรวดเร็ว

  • คำนวณพื้นที่และปริมาตร
  • สามารถวัดระยะทางได้ทั้งมาตราเมตริก (เมตร) และระบบอังกฤษ (ฟุต และนิ้ว)
  • ฟังก์ชันการวัดต่อเนื่องและคำนวณหาค่าต่ำสุด/สูงสุด
  • จอแสดงผล 3 บรรทัด และมีไฟแสงสว่าง สามารถดูข้อมูลในที่มืดได้
  • มีเสียง Beep เตือนแสดงว่าเครื่องเริ่มทำงานตามปุ่มที่กด
  • เครื่องวัดระยะรองรับการเชื่อมต่อบลูทูธ ผ่านแอปพลิเคชั่น Meterbox





Descriptions

The compact and handy base model was specifically designed for indoor applicationsand use easily as a high-precisionmeasurement tool. Design fits in everypocket and safely in places where access difficultly. Shortcut and soft grip keys for addition, subtraction, area and volumecalculation make measuring fast and very reliable.

  • Area and volume calculations
  • Unitselectable (m, ft, in)
  • Continuousmeasurement and Max/Min distance tracking
  • Displayillumination and 3-line display
  • Buzzerindication
  • Bluetooth 4.0 with APP support





เครื่องวัดระยะเลเซอร์





วิธีการใช้

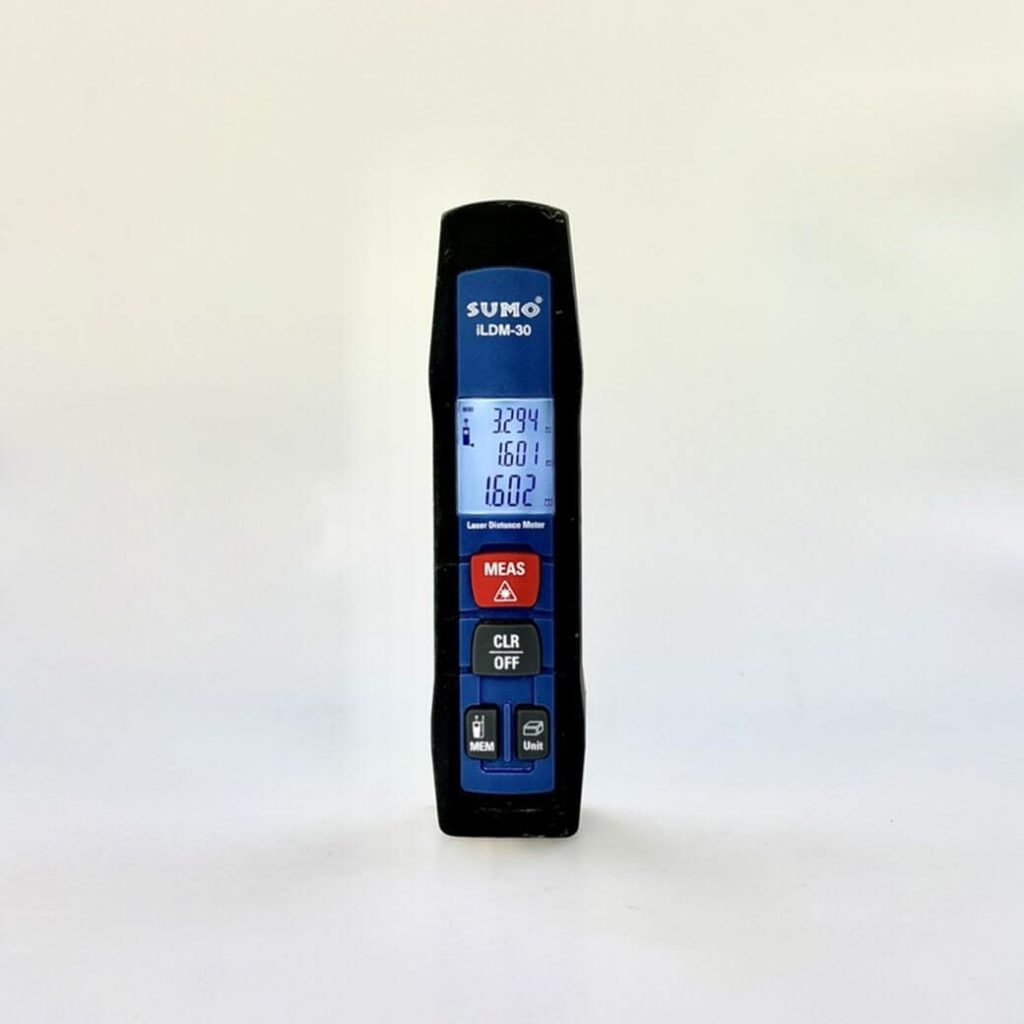

  • ปุ่มควบคุม





  1. ปุ่ม เปิด/วัดระยะ
  2. ปุ่ม เคลียร์/ปิด
  3. ปุ่ม เมมโมรี่/ตั้งค่าตำแหน่งเริ่มต้น
  4. ปุ่ม ฟังก์ชัน/เปลี่ยนหน่วย

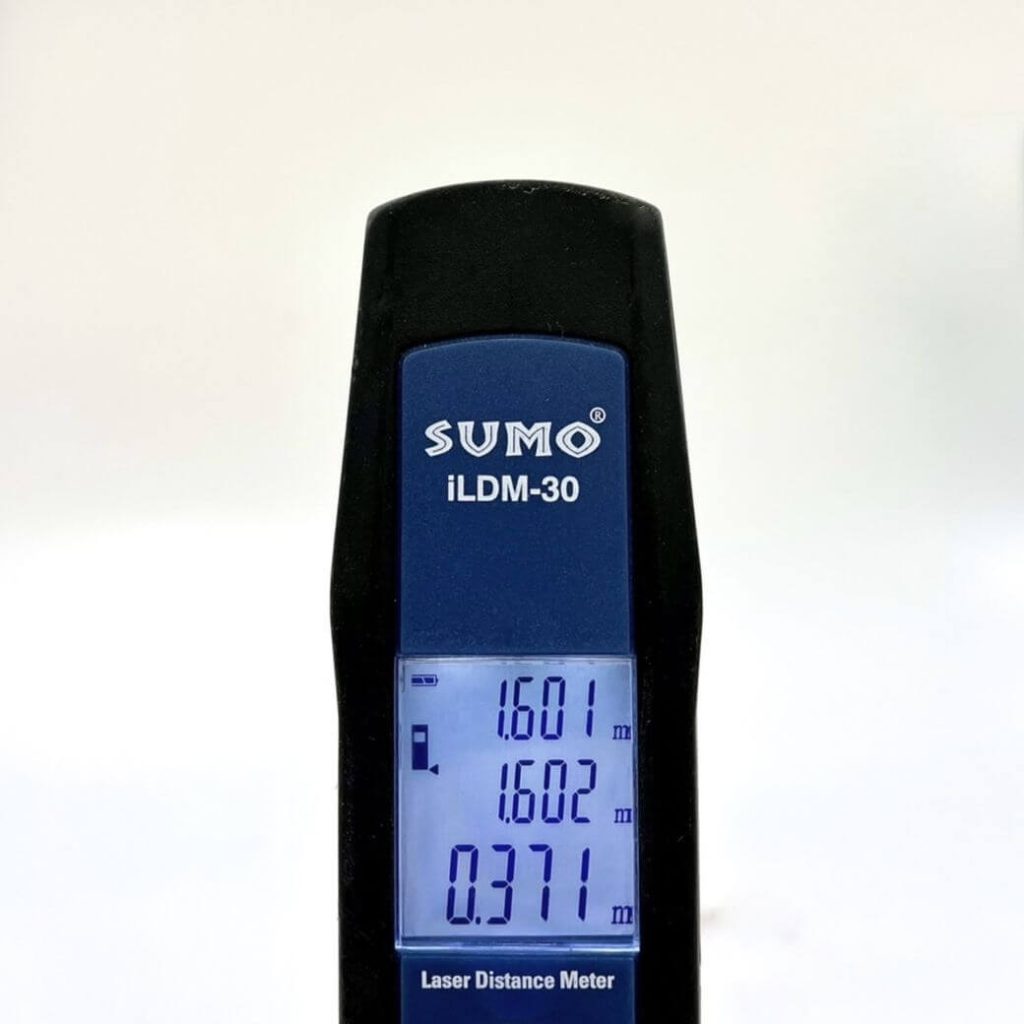

  • จอแสดงผล

1. สถานะเลเซอร์
2. ตำแหน่งเริ่มต้นของการวัด (ด้านบน)
3. ตำแหน่งเริ่มต้นของการวัด (ด้านท้าย)
4. สถานะแบตเตอร์รี่
5. ค่าการวัด บรรทัดที่ 1
6. ค่าการวัด บรรทัดที่  2
7. บรรทัดสรุปผล



  • การวัดระยะแบบซิงเกิ้ล

  กดปุ่มเพื่อเปิดใช้งานเลเซอร์และกดอีกครั้งเพื่อวัดระยะทาง ค่าที่วัดได้จะปรากฏขึ้นทันที

  • การวัดระยะแบบต่อเนื่องและการวัดค่าสูงสุด-ต่ำสุด

การใช้งานฟังก์ชันนี้ได้โดยการกดปุ่ม    ค้างไว้และเริ่มต้นการวัดและกดปุ่ม    หรือ    อีกครั้งเพื่อหยุดการใช้งานฟังก์ชันนี้จะถูกยกเลิกอัตโนมัติหลังจากวัด 100 ครั้ง ข้อมูลค่าสูงสุด-ต่ำสุดจะแสดงในบรรทัดที่ 1 และ 2

  • การวัดพื้นที่

กดปุ่ม    1 ครั้งเพื่อเริ่มต้นการวัดพื้นที่

-การวัดปริมาตร

ปุ่มกด    สองครั้งเพื่อเริ่มฟังก์ชันการวัดปริมาตร

  กดเพื่อใช้การวัดระยะแรก(เช่นความยาว)

  กดเพื่อใช้การวัดระยะทางที่สอง(เช่นความกว้าง) ค่าที่วัดได้จะแสดงอยู่ในบรรทัดสรุป

  กดเพื่อวัดระยะทางที่สาม (เช่นความสูง) ค่าจะปรากฏในบรรทัดที่สองผลลัพธ์ของการวัดปริมาตรจะแสดงอยู่ในบรรทัดสรุปซึ่งสองค่าที่วัดได้ก่อนหน้านี้จะแสดงในบรรทัด 1 และ 2

  • การเปลี่ยนหน่วย

สามารถทำได้โดย กดปุ่ม  ค้างไว้ หน้าจอจะแสดงหน่วยที่เปลี่ยนไป จากเมตร – นิ้ว – ฟุต

Manual

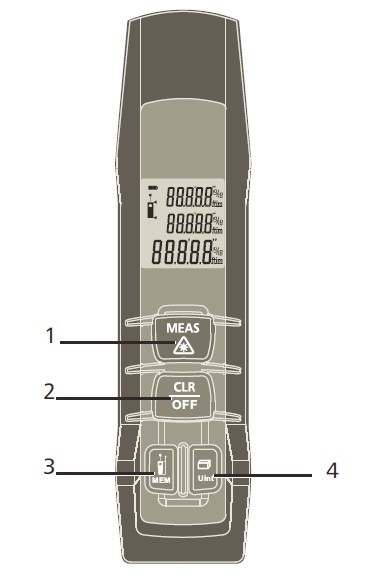

  • Keypad



  1. ON/MEAS button
  2. CLE/OFF button
  3. MEM/Reference button
  4. Function/Unit button

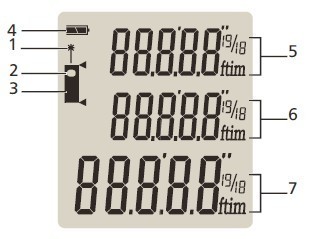

– LCD Display

  1. Laser active
  2. Reference level (front)
  3. Reference level (rear)
  4. Battery status
  5. Intermediate line 1
  6. Intermediate line 2
  7. Summary line



  • Single Distance Measurement

  Press to activate the laser, press again to trigger the distance measurement. The measured value is displayed immediately.

  • Continuous Measurement & Max and Min Measurement

For continuous measurement, long press the button    will start the continuous measurement. And press    or    button again to stop the function. The function is terminated automatically after continuous 100 times measurement. The MIN and MAX data will display in lines 1 and 2 individually.

  • Area Measurement

Press the button    once will start the area measurement function.

  • Volume Measurement

Push button    twice will start volume measurement function.

  Press to takes first distance measurement (X)

  Press to takes second distance measurement (Y) The result of the area measurement from the values already measured is displayed in the summary line.

  Press to takes the third distance measurement (Z).The value is displayed in the second line. The result of the volume measurement is displayed in the summary line, the two previously measured values in lines 1 and 2.

  • Distance unit setting for instrument

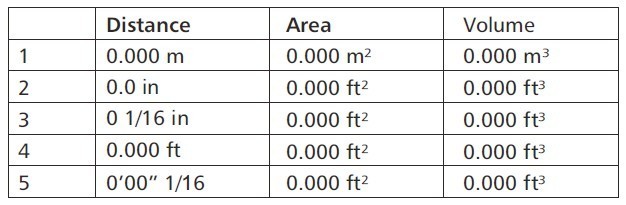

Click  button longer to change the next type of unit. The following unit can be set.

ข้อควรระวัง และการดูแล

  • ทำความสะอาดด้วยผ้าชุบน้ำหมาดๆ
  • ห้ามแช่เครื่องวัดระยะในน้ำ
  • ห้ามใช้ผลิตภัณฑ์ทำความสะอาดที่มีฤทธิ์รุนแรง หรือกัดกร่อน

Warning and maintenance

  • Clean the device with a damp, soft cloth.
  • Never immerse the device in water.
  • Never use aggressive cleaning agents or solvents.



คำเตือน

  • การมองลำแสงเลเซอร์ อาจเป็นอันตรายต่อดวงตา
  • โปรดศึกษาคู่มือเพื่อความปลอดภัยก่อนการติดตั้งหรือใช้งานอุปกรณ์

Warning

  • Looking into the laser beam may be hazardous to the eyes.
  • Please refer to the information in the manual for safety information before installing or operating the apparatus



อุปกรณ์มาตรฐาน

  • เครื่องวัดระยะ
  • คู่มือ
  • ถ่าน AAA 1.5V (2 ก้อน)

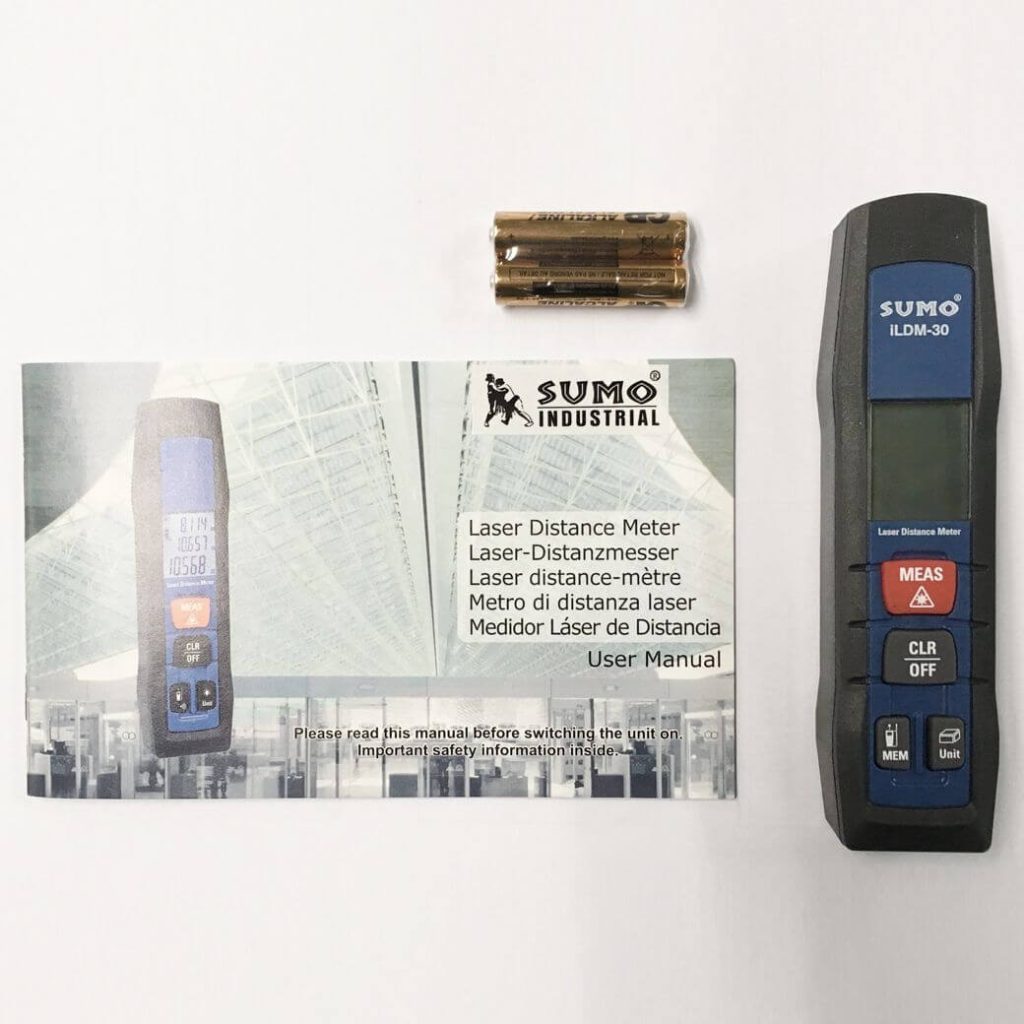

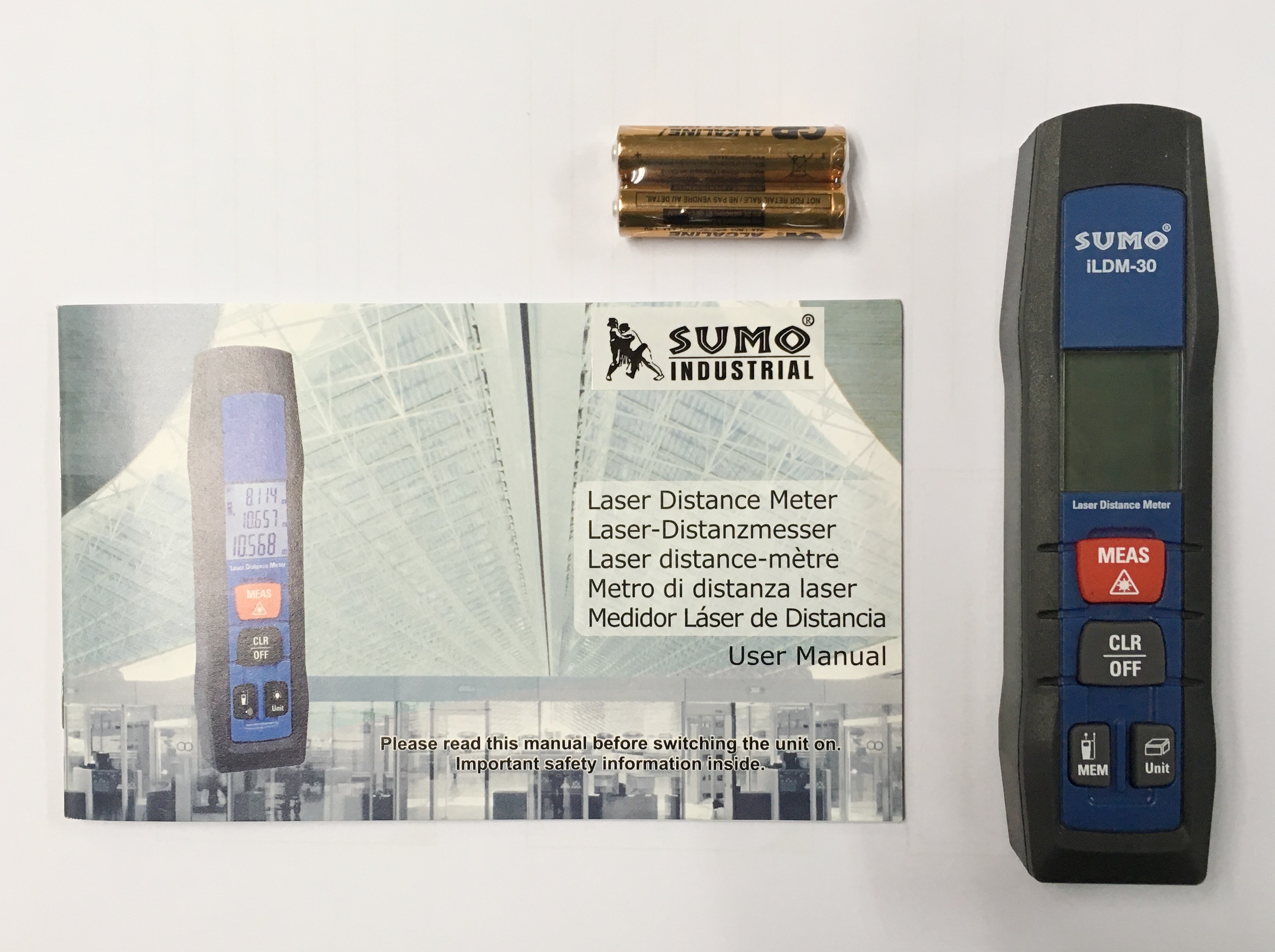

Package contents

  • Laser distance meter
  • User manual
  • 2×1.5V AAA Batterirs

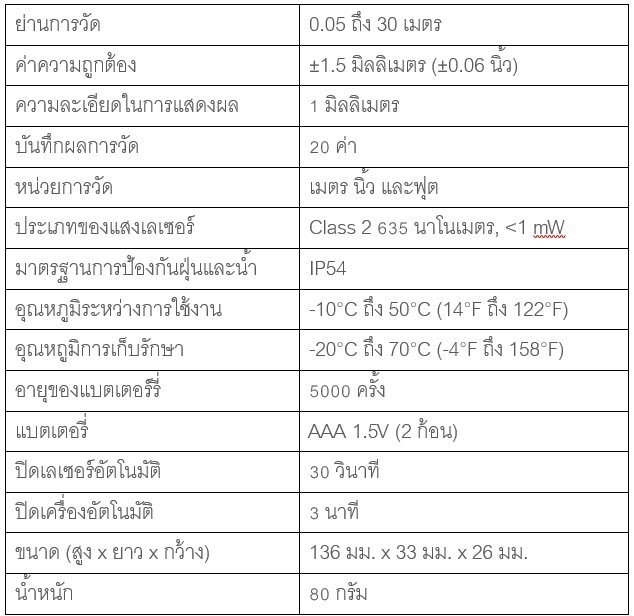

ข้อมูลจำเพาะของเครื่องวัดระยะเลเซอร์ รุ่น iLDM-30



” target=”_blank” rel=”noopener”>





ซอฟต์แวร์

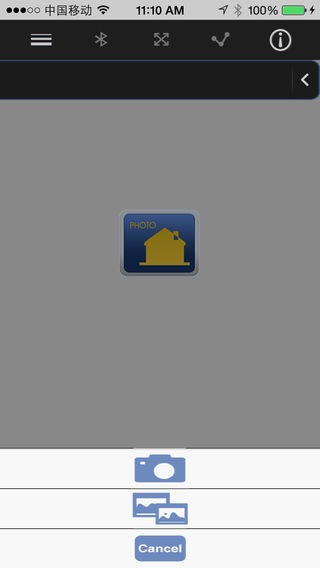

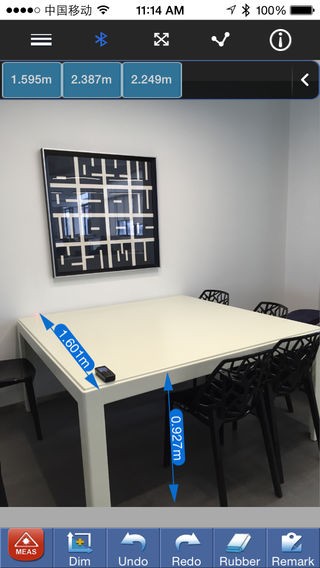

Meterbox-iLDM ซอฟต์แวร์สำหรับเครื่องวัดระยะเลเซอร์

Meterbox-iLDM ซอฟต์แวร์สามารถสนับสนุนการทำงานร่วมกันของเครื่องวัดระยะเลเซอร์ สามารถถ่ายโอนข้อมูลจากเครื่องวัดระยะสู่โปรแกรมบนสมาร์ทโฟนได้โดยตรง ผู้ใช้สามารถใช้ซอฟต์แวร์เพื่อตรวจสอบถ่ายโอน หรือแก้ไขข้อมูลตารางและแผนภูมิ นอกจากนี้ยังมีฟังก์ชัน cloud เพื่อการจัดเก็บข้อมูลออนไลน์



Application

Meterbox-iLDM Software for Laser distance meter

The meterbox-iLDM software can support out Laser Distance Meter product transferring the measured data to the customer’s smartphone. Customers can easily use the software to check, transfer or edit the data with table and chart. They also have powerful cloud functions such as computing and storage service.
