รายละเอียดเพิ่มเติม

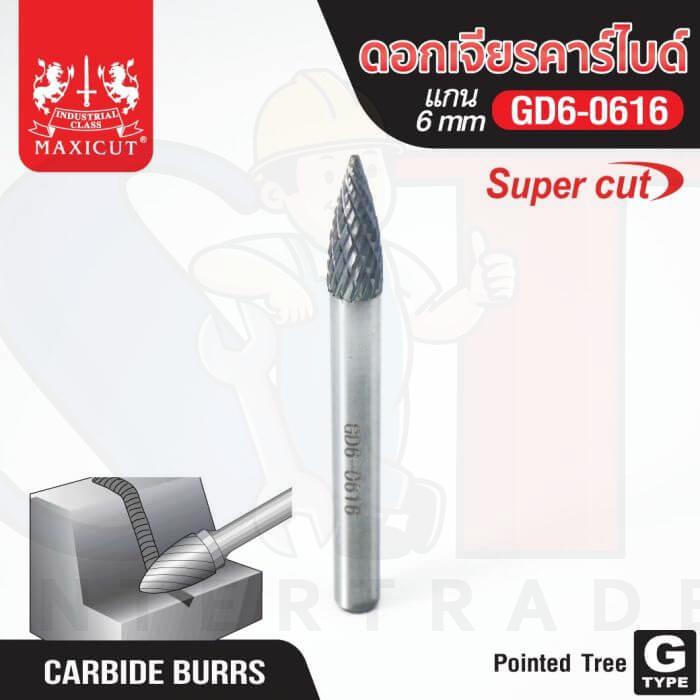

ดอกเจียรคาร์ไบด์ GD6-0616 Pointed Tree Super Cut

เหมาะสำหรับ

  • งานเจียร กัดเซาะร่อง แกะสลัก แต่งผิวชิ้นงาน หรือ ลบรอยเชื่อม

วิธีใช้

  • ใช้งานร่วมกับอุปกรณ์เครื่องเจียรมือ,เครื่องเจียรไฟฟ้าและเครื่องเจียรลม

DOUBLE CUT

Allows rapid stock removal and in ceased production rates. Effectively breaks down the chips as the material is removed, resulting in a smoother running burr.

  • Recommended materials
  • for working on mateials which produce long chips – soft steel, cast iron welds.

Steel & Steel castings

  • Non-hardened, non-heat treated steels over 35 HRC 450 – 600 m/min
  • Hardened, heat treated steels over 35 HRC 250 – 350 m/min
  • Stainless Steels 250 – 350 m/min

Hardened non-ferrous metals

  • (Bronze, Titanium, Hard Aluminium)
  • Coarse machining (High stock removal) 250 – 350 m/min
  • Nickle based alloys 300 – 450 m/min
  • Cast iron 450 – 600 m/min

คำแนะนำในการใช้งาน

  • ควรปรับความเร็วรอบ ตามแผนภูมิหรือคู่มือ เพื่อให้บรรลุประสิทธิภาพสูงสุด
  • ควรใช้ความเร็วรอบต่ำสำหรับวัสดุที่มีความแข็ง
  • หัวเจียร์ขนาดเล็กควรใช้ความเร็วรอบสูง
  • รุ่นก้านยาวให้ใช้ความเร็วรอบต่ำเพื่อความปลอดภัย
  • เคลื่อนที่อย่างสม่ำเสมอและใช้แรงกดที่เบาเมื่อใช้งาน
  • ความเร็วรอบที่ต่ำกว่าที่ระบุไว้ อาจทำให้เกิดการบิ่น
  • ความเร็วรอบที่ต่ำกว่าที่ระบุไว้ อาจทำให้เกิดการบิ่น
  • การใช้เครื่องมือและจำปาที่ชำรุด จะทำให้บิ่นเร็วขึ้น
  • อย่าจมลายมากกว่าหนึ่งในสามของเส้นรอบวง

คำแนะนำในการใช้งาน

  • ควรปรับความเร็วรอบ ตามแผนภูมิหรือคู่มือ เพื่อให้บรรลุประสิทธิภาพสูงสุด
  • ควรใช้ความเร็วรอบต่ำสำหรับวัสดุที่มีความแข็ง
  • หัวเจียร์ขนาดเล็กควรใช้ความเร็วรอบสูง
  • รุ่นก้านยาวให้ใช้ความเร็วรอบต่ำเพื่อความปลอดภัย
  • เคลื่อนที่อย่างสม่ำเสมอและใช้แรงกดที่เบาเมื่อใช้งาน
  • ความเร็วรอบที่ต่ำกว่าที่ระบุไว้ อาจทำให้เกิดการบิ่น
  • ความเร็วรอบที่ต่ำกว่าที่ระบุไว้ อาจทำให้เกิดการบิ่น
  • การใช้เครื่องมือและจำปาที่ชำรุด จะทำให้บิ่นเร็วขึ้น
  • อย่าจมลายมากกว่าหนึ่งในสามของเส้นรอบวง

Recommendation For Use

  • It may be necessary to alter the running speeds form those shown in the speed chart in order to achieve optimum performance.
  • Harder materials require slower running speeds.
  • Smaller burrs require faster running speeds.
  • Long shank burrs require slower speeds for safety reasons.
  • Apply constant movement and light pressire when using the burr.
  • Running below the optimum speed will cause chipping.
  • Allowing the burr to become too hot may cause the braze to soften, and cause the head to become detached from the shank.
  • Using tools and collets which have become worn will encourage chipping.
  • Do not sink the burr for more than one third of its periphery.

คำเตือน

  • ควรสวมใส่อุปกรณ์ป้องกันทุกครั้ง
