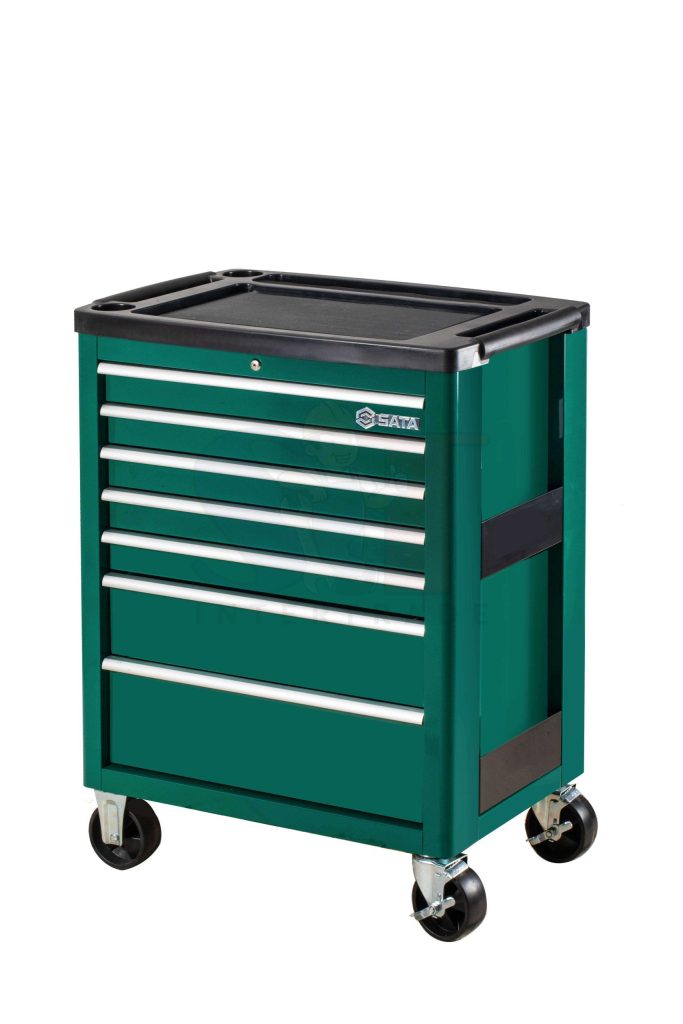

ตู้เครื่องมือ 7 ชั้น ขนาด 29นิ้ว SATA 95207

Introduction

● High strength structure design and powder sprayed surface, suitable for complicated working environment of factories
● Inner dimensions of drawer:
1st~ 5th layers: 570 x 380 x 63MM (L x W x H)
6-layer: 570 x 380 x 135MM (L x W x H)
7th layer: 570 x 380 x 182MM (L x W x H)
● High quality slider, ensuring smooth opening/closing of drawers even under rated load
● High quality caster, ensuring smooth traveling, high steering performance and no skidding after braking
● Trolley bench processed by unique injection molding technology, ensuring higher strength
● Annular key structure, extending service life of the lock
● Rated load of single drawer in the 1st ~ 6th layers: 35 kg, that of single drawer in the 7th layer: 45 kg
● Overall rated load: 300 kg
● Supporting set: 95207S 171-piece general repair tool set (suitable for 95207 tool trolley)

SPECIFICATIONS

Product No 95207
W (CM) 49
Net Weight (kg) 72.25
MADE IN China
Sepcification 29″
L (CM) 80.5
Warranty Terms Lifetime Warranty
H (CM) 100
Inner dimensions of drawers 1~5 levels: 570x380x63MM(LxWxH)
6 levels: 570x380x135MM(LxWxH)
7 levels: 570x380x182MM(LxWxH)
Overall rated load (kg) 300
