รายละเอียดเพิ่มเติม

SPECIFICATION

MODEL

MOTOR (mm)

VOLTS

HZ.

AMP

RPM

IP

PRICE

TSM-1TF

1

220/380

50

4.0/2.5

1420

55

3,220

TSM-2TF

2

220/380

50

7.0/4.0

1430

55

4,210

TSM-3TF

3

220/380

50

8.5/5.0

1430

55

5,095

TSM-5TF

5

220/380

50

11.0/6.5

1430

55

6,920

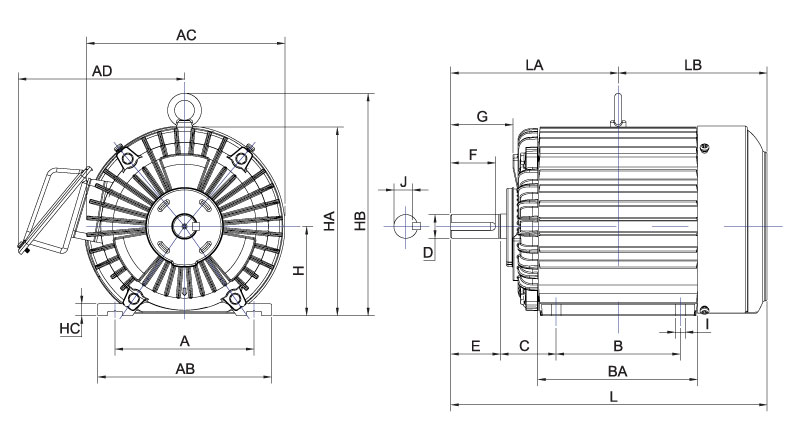

DIMENSION

A AB AC AD B BA C D E F G H HA HB HC I J L LA LB SPECIAL
125 160 175 156 100 140 50 19 40 32 49 80 168 12 10 15.4 275 140 135
140 175 200 165 125 160 56 24 50 48 62.5 90 190 225 12 10 20 318.5 168.5 150 EYE BOLT M8
160 200 200 165 140 185 63 28 60 58 74.5 100 200 235 12 12 24 355.5 193 162.5 EYE BOLT M8
190 230 225 177 140 190 70 28 60 50 71 112 225 260 15 12 24 376 200 176 EYE BOLT M8
