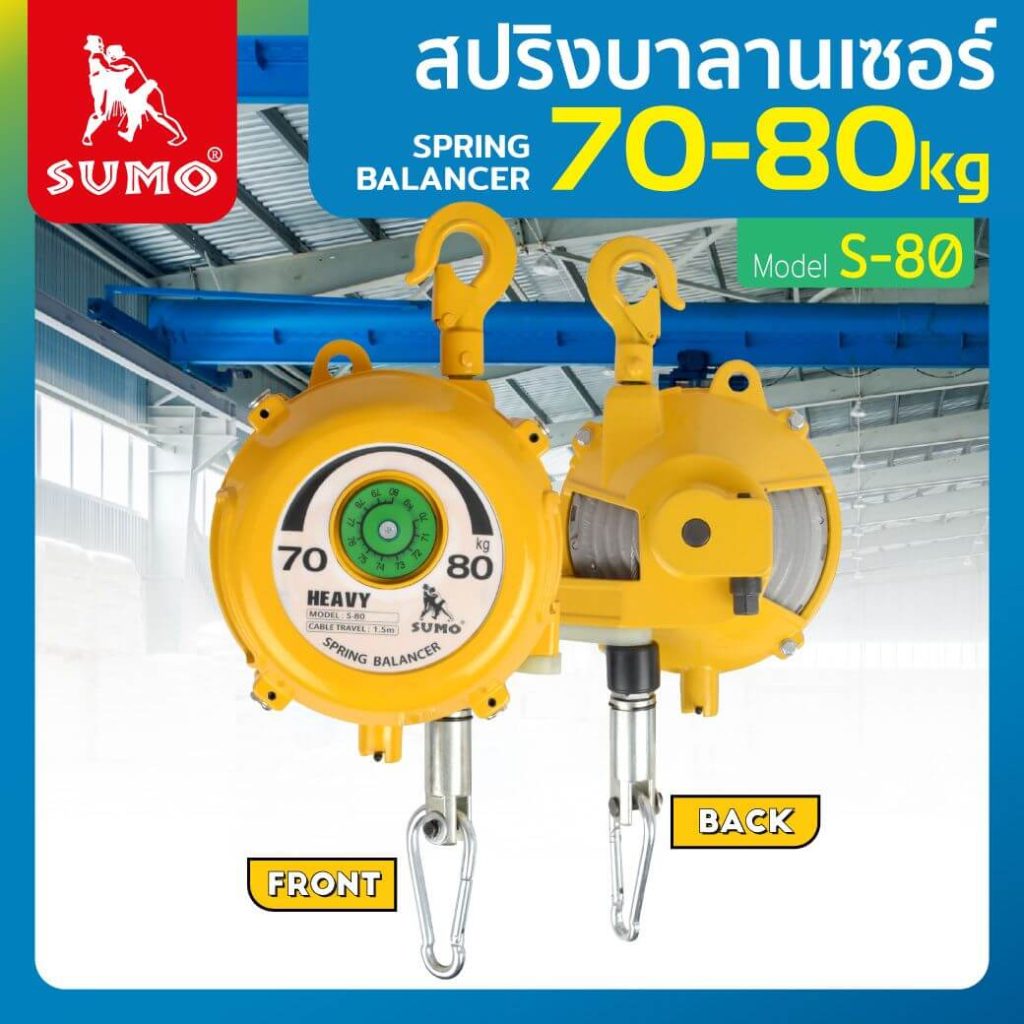

สปริงบาลานเซอร์ 70-80kg รุ่น S-80

Spring balancer 70-80kg Model S-80

สปริงบาลานเซอร์ STINTERTRADE

สปริงบาลานเซอร์ STINTERTRADE

สปริงบาลานเซอร์ STINTERTRADE

สปริงบาลานเซอร์ STINTERTRADE

สปริงบาลานเซอร์ STINTERTRADE

สปริงบาลานเซอร์ STINTERTRADE

สปริงบาลานเซอร์ STINTERTRADE

สปริงบาลานเซอร์ STINTERTRADE

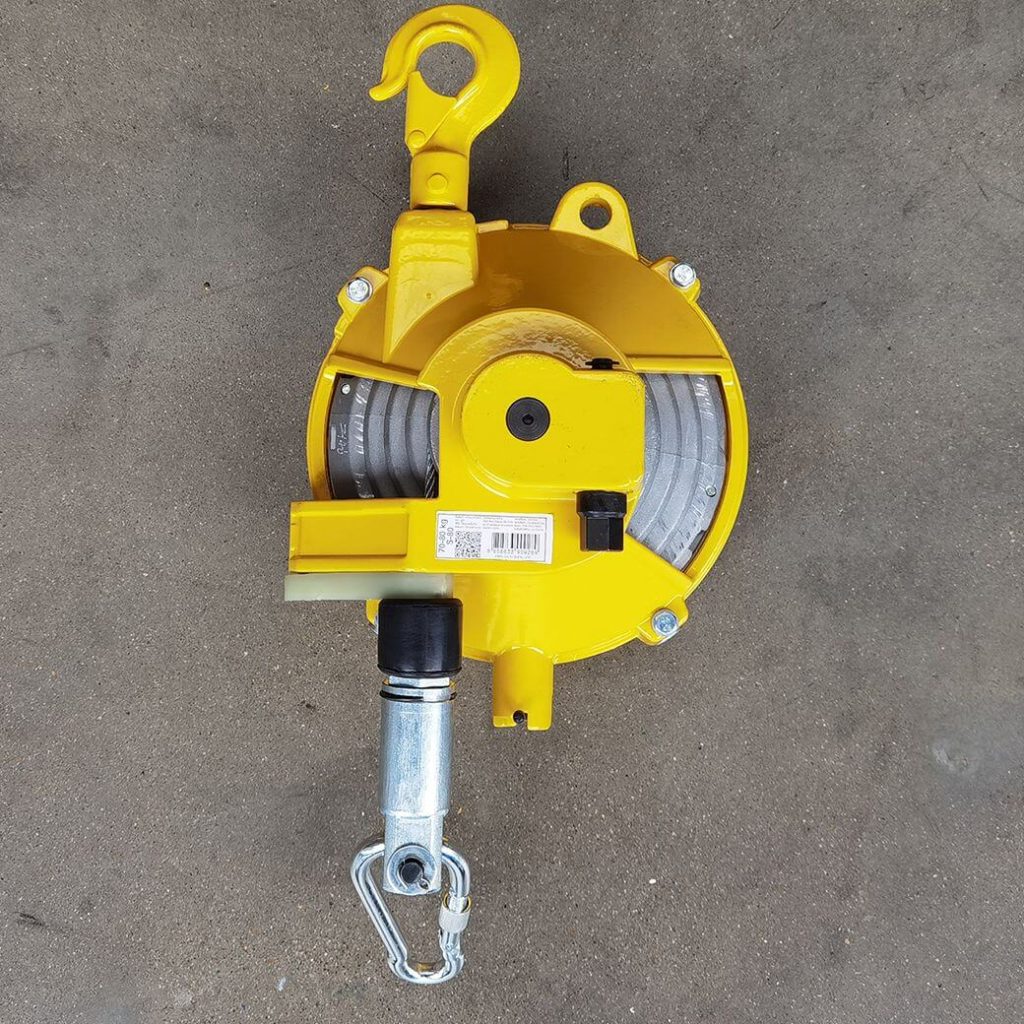

ส่วนประกอบ/Component

  • รอกสปริง มีตะขอ ตะขอบนและล่างมีสลักยึดเพื่อป้องกันอุบัติเหตุเครื่องมือหลุดจากตะขอสปริงบาลานเซอร์
  • ห่วงที่สองสำหรับแขวนเชือก เพื่อป้องกันการตกหล่นทำให้มีความปลอดภัยและช่วยเพิ่มสมดุลของสปริงบาลานเซอร์ให้คงที่มากขึ้น

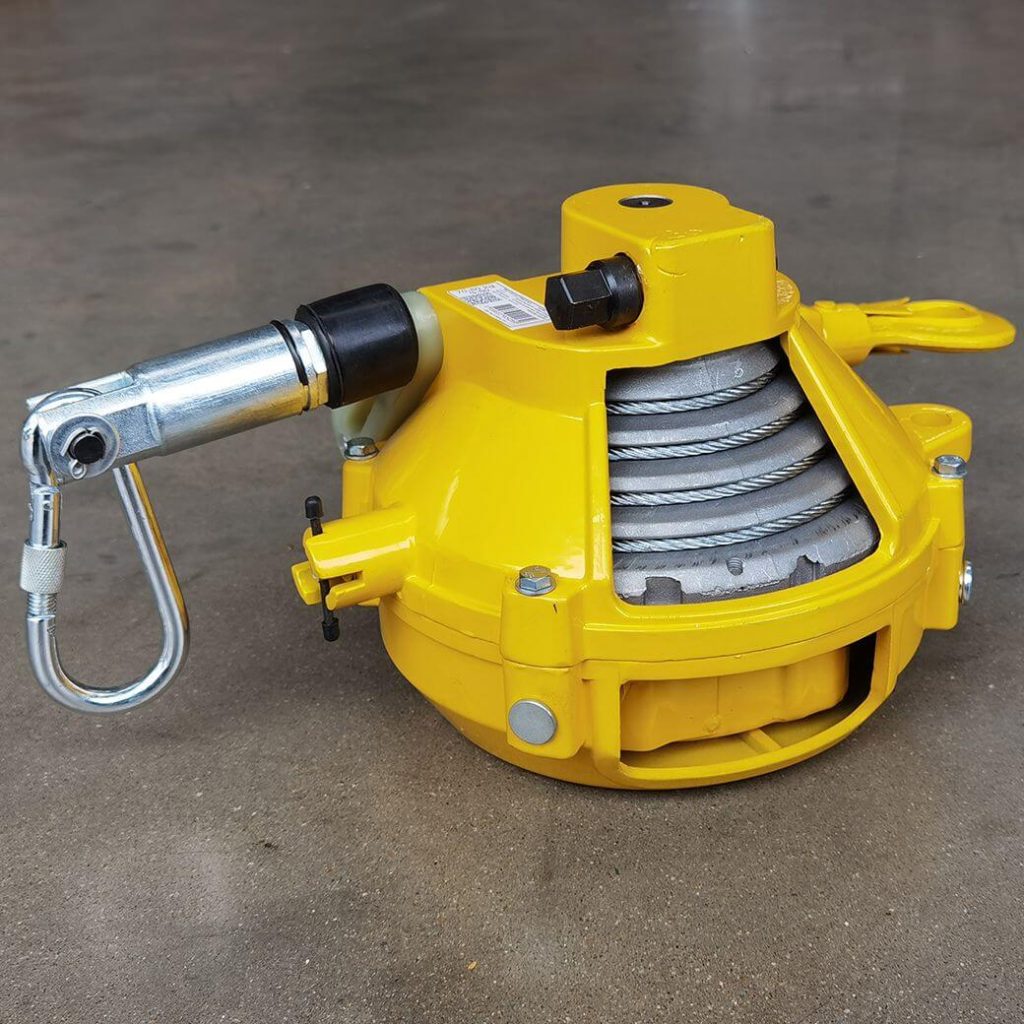

  • Tapered Cable Drum ช่วยเพิ่มความเสถียรภาพแรงตึงของสายเคเบิล ทำให้ผู้ใช้มั่นใจได้ว่าสาย จะตึงตลอดเวลาในขณะใช้งาน

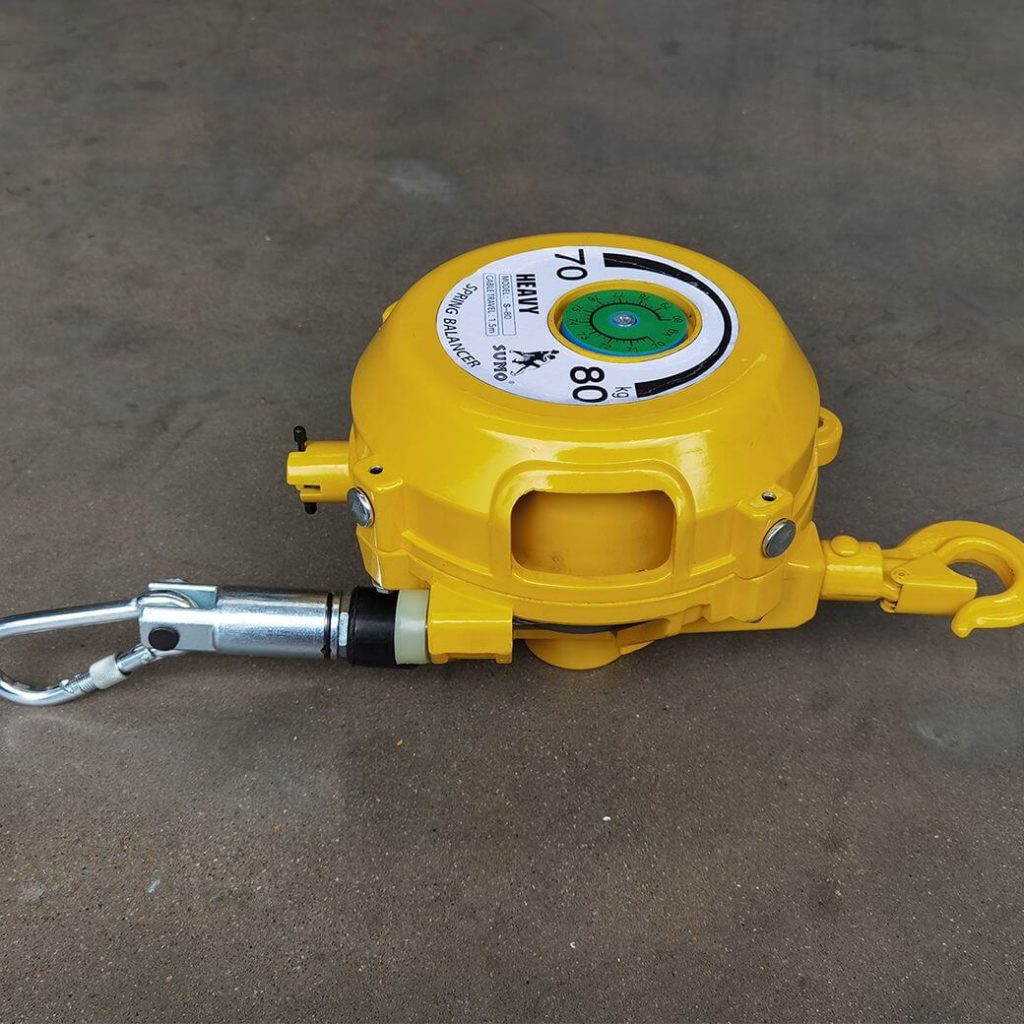

  • เกจวัดแรงตึงของสาย ช่วยให้ผู้ใช้สามารถเห็นการตั้งค่าความตึงของสาย
  • ลูกปืนและแกนหมุน ใช้งานได้ยาวนาน

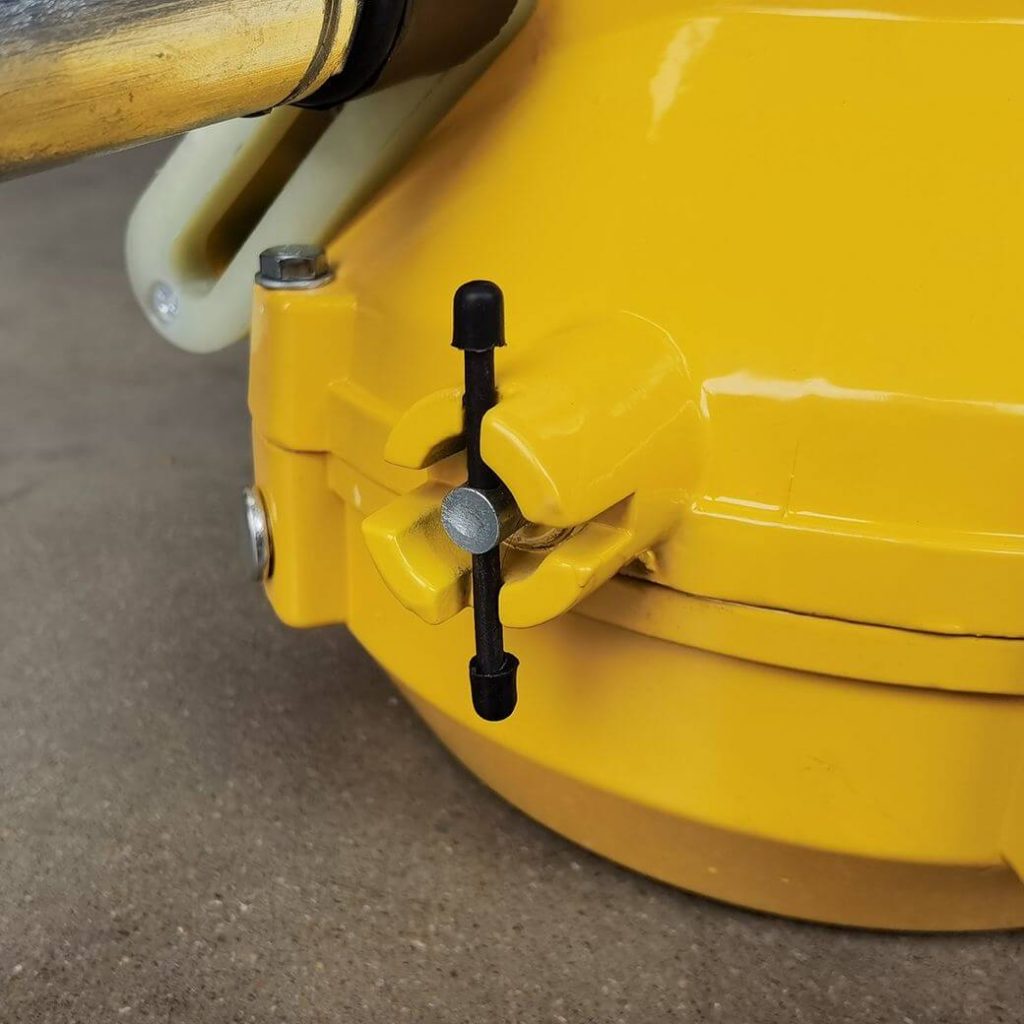

  • Safety Device Pin ช่วยป้องกันเครื่องมือตก
  • Top hook Top and bottom hooks have a safety latch to prevent accidental unhooking of either balancer from top hanger or suspended tool from the balancer.
  • Secondary support Top Hanger Upper and lower hanger are provided for attachment of secondary support. chains to provide additional safety and to prebent possibility of balancer and load falling accidentally.
  • Tapered Cable Drum Assures even tension in cable throughout working range.

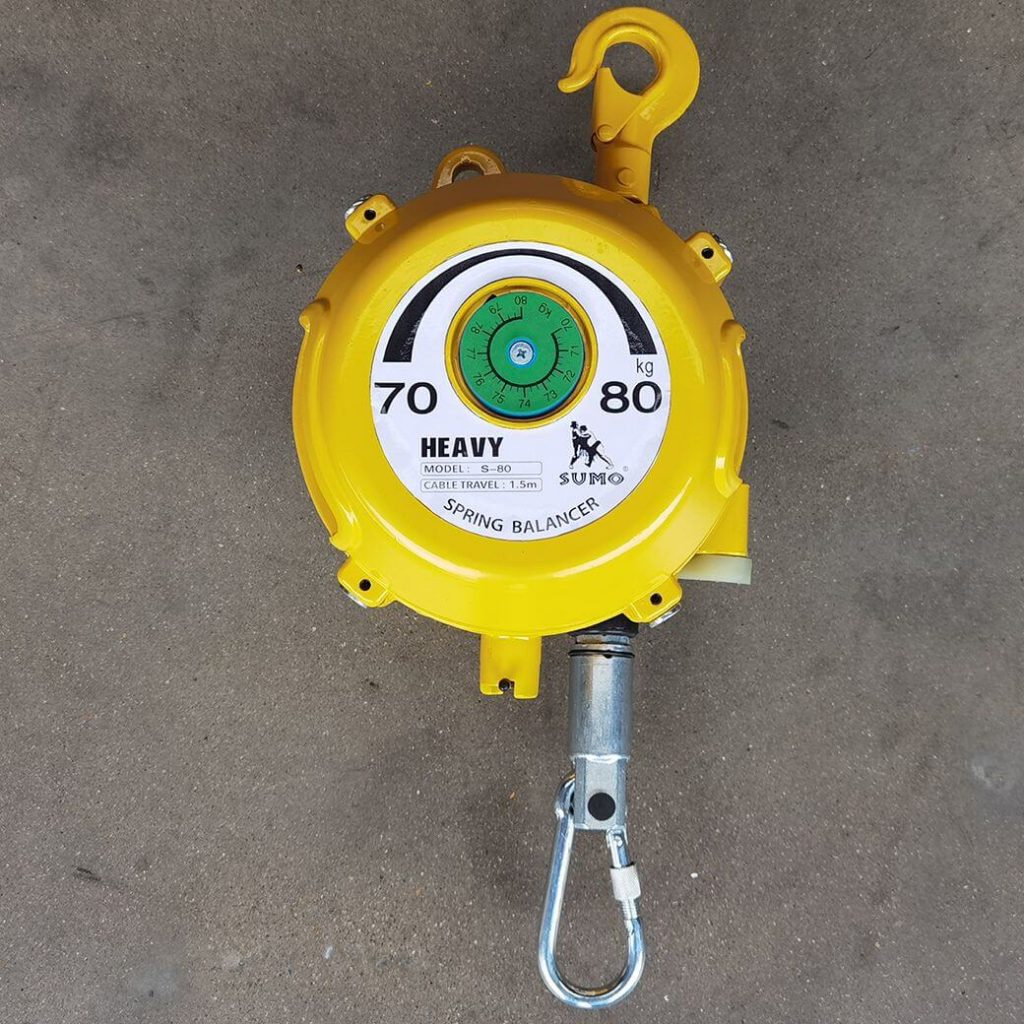

  • Tension Gauge Lets operator see tension setting.
  • Ball Bearing and Spindle Assy Provides long life & reliable operation.
  • Safety Device Pin Prevent tool from dropping.



1. Top hook – Top and bottom hooks have a safety latch to prevent accidental unhooking of either balancer from top hanger or suspended tool from the balancer.

ตะขอ – ตะขอบนและล่างมีสลักยึดเพื่อป้องกันอุบัติเหตุ เครื่องมือหลุดจากตะขอสปริงบาลานเซอร์

2. Secondary Support Top Hanger – Upper and lower hanger are provided for attachment of secondary support chains to provide additional safety and to prevent possibility of balancer and load falling accidentally.

ห่วงที่สองสำหรับแขวนเชือก – เพื่อป้องกันการตกหล่น ทำให้มีความปลอดภัยและช่วยเพิ่มสมดุลของสปริงบาลานเซอร์ให้คงที่มากขึ้น

3. Spring In Spring Case

4. Tapered Cable Drum – Assures even tension in cable throughout working range. ช่วยเพิ่มความเสถียรภาพแรงตึง

ของสายเคเบิล ทำให้ผู้ใช้มันใจได้ว่าสายจะตึงตลอดเวลาในขณะใช้งาน

5. Tension Gauge – Lets operator see tension setting

เกจวัดแรงตึงของสาย – ช่วยให้ผู้ใช้สามารถเห็นการตั้งค่าความตึงของสาย

6. Ball Bearing and Spindle Assy – Provides long life &reliable operation

ลูกปืนและแกนหมุน – ใช้งานได้ยาวนาน

7. Safety Device Pin – Prevent tool from dropping

ช่วยป้องกันเครื่องมือตก

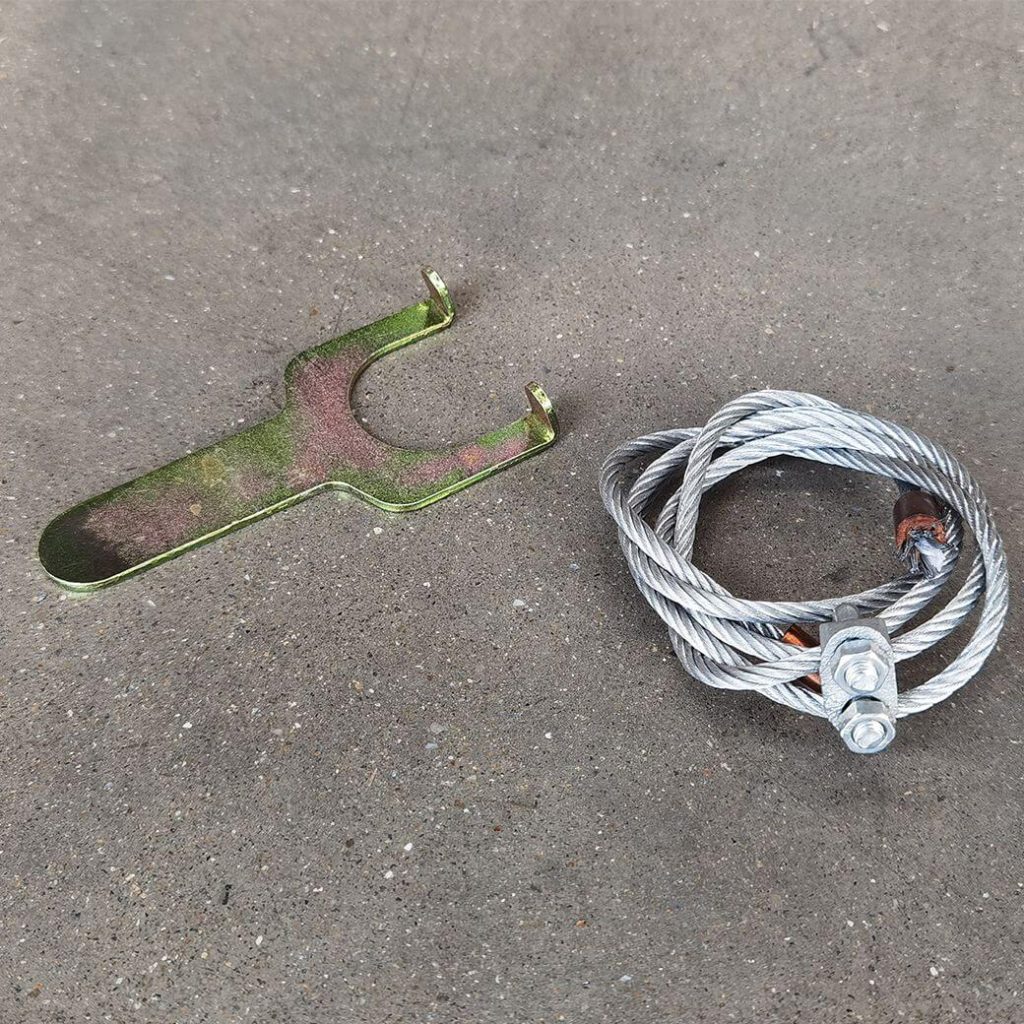

8. Support Cable (Rope)



เหมาะสำหรับ/Suitable for

  • รอกสปริง เหมาะสำหรับเครื่องมือลมและเครื่องมือเชื่อม
  • Many safety features are equipped and they are most popular for a welding gun. Pneumatic tool etc.





คุณสมบัติ/Feature

  • รอกสปริง มีสายเคเบิลมีความยืดหยุ่น จึงทำให้ผู้ใช้ดึงสายออกมาใช้ได้สะดวก ช่วยลดความเมื่อยล้า และปลอดภัยในขณะใช้งาน
  • ช่วยผ่อนแรงของผู้ใช้ โดยที่มีน้ำหนักของอุปกรณ์จะไปอยู่ที่ตัวสปริงบาลานเซอร์ จึงทำให้อุปกรณ์มีน้ำหนักเบาลงในขณะใช้งาน
  • โครงสร้างของสปริงบาลานเซอร์ทำจากอลูมิเนียม ซึ่งมีวามแข็งแรงทนทานและใช้งานได้นาน
  • สามารถปรับความตึงของสายได้ง่าย และแม่นยำ
  • เป็นอุปกรณ์ช่วยผ่อยแรงในการใช้งานเครื่องมือหนัก ลดความเมื่อยล้าของกล้ามเนื้อที่ใช้ในการยกเครื่องมือ
  • ช่วยให้ผู้ใช้ทำงานได้สะดวกสบายยิ่งขึ้น เพื่มปรพสิทธิภาพในการทำงาน ลดความเสี่ยงอันตรายจากการยกเครื่องมือหนักหรือสิ่งของที่มีน้ำหนักมาก
  • ประหยัดพื้นที่ในการทำงาน และง่ายต่อการทำความสะอาด
  • ตำแหน่งของเครื่องมือคงที่ มีความเสถียร จึงทำให้งานมีปรสิทธิภาพและมีความแม่นยำ
  • Sumo spring balancers can hold the tools suspended in hollow and work for flexible positioning of the tools. workers can enjoy comfortable operation with less fatigue
  • They support heavy tools with cable tension equal to the weight of the suspended tools, which makes them seem virtyally “weughtless”.
  • Cast aluminum case
  • Tension adjustment is easy and precise.
  • Making worker can comfortable operation with less fatigue.
  • Workers can enjoy comfortable operation and improved working efficiency. Contributes to a safer working enironment.
  • Making the working space available widely.
  • Stabilizes tool positioning and contributes to work accuracy.



การใช้งาน/Appliccation

  • ควรเลือกขนาดของปริงบาลานเซอร์ให้เหมาะกับการใช้งาน โดยดูจากน้ำหนักของเครื่องมือและอุปกรณ์เสริม และนำมาเชคกับตัวสปริงบาลานเซอร์ว่าสามารถรองรับน้ำหนักสูงสุดไม่เกินกี่กิโลกรัม (max capacity) เพื่อให้เกิดความสมดุลในการใช้งาน
  • การเลือกใช้งานสปริงบาลานเซอร์ ควรพิจารณาน้ำหนักสูงสุดที่สปริงบาลานเซอร์สามารถรองรับได้ โดยเลือกสปริงบาลานเซอร์ ที่มีน้ำหนักใกล้กับเครื่องมือมากที่สุด เช่น น้ำหนักเครื่องมือ 13.0 กิโลกรัม ดังนั้นผู้ใช้ควรเลือกใช้สปริงบาลานเซอร์รุ่น S-80 (70-80 กก.)
  • เพื่อความปลอดภัยในขณะใช้งาน ควรแขวนปริงบาลานเซอร์ที่ห่วงที่ 2 ด้วย
  • ควรแขวนตัวสปริงบาลานเซอร์ในแนวตั้ง และผู้ใช้ควรดึงสายเคเบิ้ลตามแนวดิ่ง
  • Choose the size of the balancer with regard to the total weight to be suspended (tool plus accessories) and to the requested hoist.
  • Always attach secondary support cable(S) to the eyelet provided for additional safety.
  • Always attach secondary support cable(S) to the eyelet provided for additional safety.
  • Balancers are normally hung vertically and the rope is pulled out vertically.



การปรับระดับความตึงของสาย/Spring Tensioning Systems

  • Handle system หมุนตามเข็มนาฬิกาเพื่อเพิ่มความตึงของสาย หมุนทวนเข็มเพื่อลดความตึงของสาย หมุนทวนเข็มเพื่อลดความตึงของสาย ปรับความตึงของสาย เพื่อปรับระดับเครื่องมือให้อยู่ในระดับที่ผู้ใช้ต้องการ
  • Ratchet system ใช้ประแจไข หมุนตามเข็มนาฬิกาเพื่อเพิ่มความตึงของสายหมุนทวนเข็มเพื่อลดความตึงของสาย
  • หมุนตามเข็มนาฬิกาเพื่อเพิ่มความตึงของสาย หมุนทวนเข็มเพื่อลดความตึงของสาย
  • Handle system Turn clockwise to increase tension, counter-clockwise to decrease tension
  • Ratchet system Insert Allen wrench and turn clockwise to increase tension and counter-clockwise to vdecrease tension.
  • Turn clockwise to increase tension, counter-clockwise to decrease tension.







รายละเอียด (Specifications)

Model

รุ่น

Capacity (kg)

ความจุ (กก.)
Stroke (m)

ความยาวของสลิง

Cable Diameter (mm)

ขนาดเส้นรอบวงสลิง

Weight (kg)

น้ำหนัก

Qty/Ctn

จำนวน/กล่อง
Price/Piece

ราคา/ชิ้น

S-80 70-80 1.5M 4.8 13.0 1 11000.-

คำเตือน/Warning

  • ตรวจสอบให้แน่ใจว่า สปริงบาลานเซอร์ที่นำมาใช้งาน สามารถรองรับน้ำหนักเครื่องมือและอุปกรณ์เสริมได้
  • ควรแขวนสปริงบาลานเซอร์ ที่ห่วงที่ 2 ด้วยเพื่อความปลอดภัยและป้องกันการตกหล่น
  • ผู้ใช้ควรอ่านคำแนะนำในการดำเนินการและคำเตือนอย่างละเอียด
  • Be sure that supporting structure and load-attaching devices used in conjunction with this equipment are adequate to handle the rated load plus the weight or the equipment.
  • It is strongly recommended that all balancers mounted overhead have a secondary chain attached, to prevent the possibility of the balancer accidentally falling.
  • Read all operating instructions and warnings carefully.
