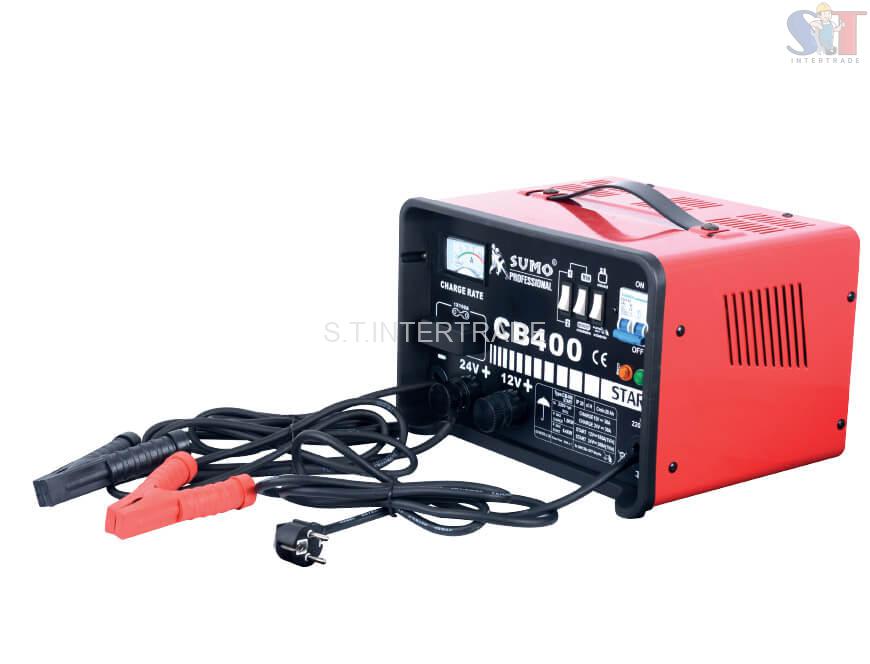

เครื่องชาร์จและสตาร์ท รุ่น CB-400 SUMO

Bettery Charge and Start Machine Model CB-400 SUMO

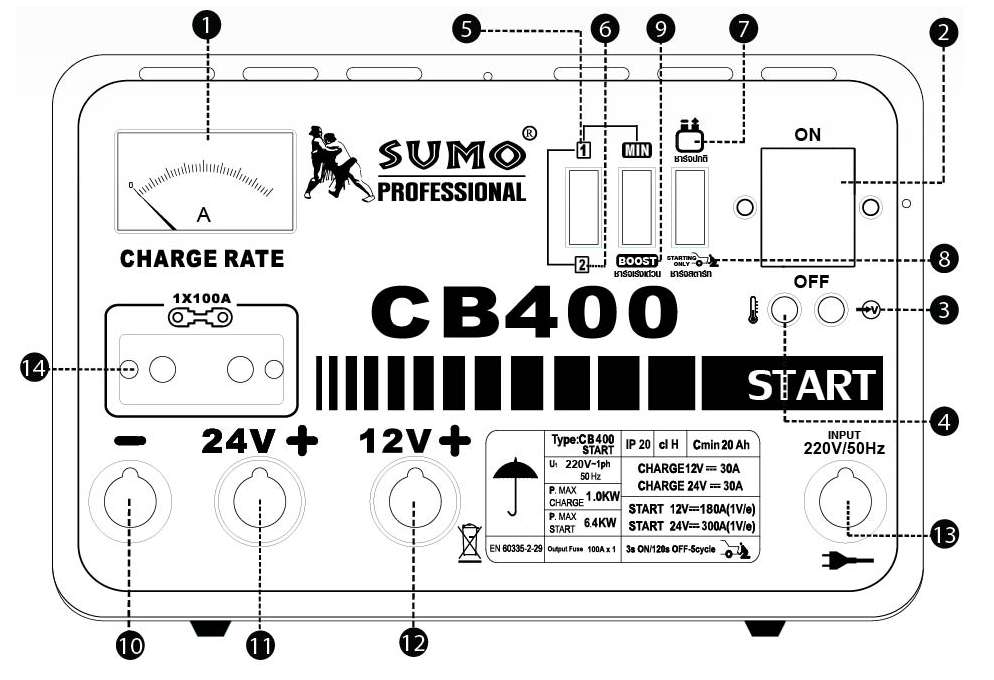

ส่วนประกอบ

  • 1.หน้าปัดแอมมิเตอร์
  • 2.เบรคเกอร์ เปิด-ปิด การทำงาน
  • 3.ไฟแสดงสถานะขณะทำงาน
  • 4.ไฟแสดงสถานะเมื่อความร้อนเกิน
  • 5.ชาร์จปกติระดับ 1
  • 6.ชาร์จปกติระดับ 2
  • 7.โหมดชาร์จปกติ
  • 8.โหมดชาร์จสตาร์ท
  • 9.โหมดชาร์จเร่งด่วน
  • 10.ขั่วลบ
  • 11.ขั้วบวกสำหรับแบตเตอรี่ 24V
  • 12.ขั้วบวกสำหรับแบตเตอรี่ 12V
  • 13.In Put Power 220V/50Hz
  • 14.ฟิวส์

เหมาสำหรับ

  • ชาร์จแบตเตอรี่รถยนต์ทุกประเภท รถตู้ไฟ รถแทรกเตอร์หรือรถบรรทุกในอู่รถทั่วไป

Suitable for

  • Starting all kinds of cars, vans light tractors and trucks, automobile repair shops.

คุณสมบัติ

  • เครื่องชาร์จ CB400 สามารถชาร์จแบตเตอรี่ได้ทั้งแบบ 12โวลต์ และ 24 โวลต์ โดยสามารถจ่ายกระแสไฟฟ้าได้สูงสุดถึง 30 แอมป์ หรือ 700 แอมป์/ชั่วโมง ประกอบไปด้วยโหมดชาร์จแบบปกติ ชาร์จแบบเร่งด่วนและชาร์จสตาร์ทไ อีกทั้งยังมีระบบป้องกันไฟฟ้าลัดวงจรไม่ให้เกิดความเสียหายต่อเครื่องชาร์จและผู้ใช้งาน
  • ชั้นที่ 1 Circuit Breaker : ป้องกันการโหลดกระแสไฟฟ้าเกินหากมีการลัดวงจรของระบบไฟฟ้า Circuit Breaker จะตัดกระแสไฟฟ้าโดยอัตโนมัติ
  • ชั้นที่ 2 ระบบควบคุมอุณหภูมิเครื่องชาร์จ : หากมีความร้อนเกินกว่าที่หม้อแปลงจะสามารถปรับได้ Thermostat จะตัดการจ่ายกระแสไฟฟ้าของเครื่องชาร์จทันที ระบบนี้ทำงานพร้อมกับไฟแสดงสถานะ OC เมื่ออุณหภูมิลดลงสู่ภาวะปกติไฟแสดงสถานะจะดับลง และสามารถทำงานได้ตามปกติอีกครั้ง
  • ชั้นที่ 3 ฟิวส์ : ป้องกันเครื่องชาร์จ เช่น การต่อสารชาร์จสลับขั้วหรือการจ่ายกระแสไฟฟ้าเกินกว่าที่แบตเตอรี่จะรับได้และการใช้งานอย่างไม่ถูกต้องแบบอื่นๆ

Feature

  • Charger model CB400 can charge the battery 12 and 24 volt with max current 30 Ah or 700 Ah/hour and have 2 modes of charging (normal and accelerating charging). There are 3 systems of safety to protect user and device.
  • 1.Circuit breaker system : The electrical current will be cut out automatically to protect the charger and user from electrical current overload.
  • 2.Over heat system : there is an LED light for over heat and the thermostat will cut the electrical current out to protect the charger. The device will automatically start to protect the charge again when it is cool down.
  • 3.Fuse system : there is a fuse to protect the charger and battery the mistake of charging, e.g. depolarization connecting, overload the current to battery, fail of using, etc.

ข้อแนะนำ

  • การชาร์จแบตเตอรี่ให้ได้ประสิทธิภาพสูงสุดใช้กระแสไฟในการชาร์จ 1/10 เช่น แบตเตอรี่ 100A ควรใช้กระแสไฟชาร์จ 10 แอมป์

Suggestion

  • For optimal performance charging battery, use electric electric current 10Amp

คำเตือน

  • ก่อนใช้อุปกรณ์นี้โปรดอ่านคู่มือวิธีการใช้งานด้วยความระมัดระวัง
  • ห้ามใช้เครื่องชาร์จแบตเตอรี่ CB400 ชาร์จแบตเตอรี่ที่มีขนาดต่ำกว่า 20 Ah เด็ดขาด เพราะ CB400 เป็นเครื่องชาร์จแบตที่มีแอมป์สูงจะทำให้แบตเตอรี่ที่มีขนาดต่ำกว่า 20 แอมป์ เกิดความร้อน และระเบิดได้

Warning

  • Please read manual carefully before using.
  • Do not use Charger Model CB400 to charge the battery which it less than 20 Ah. It is because this device is high output and the battery will be over heat and exploded.
