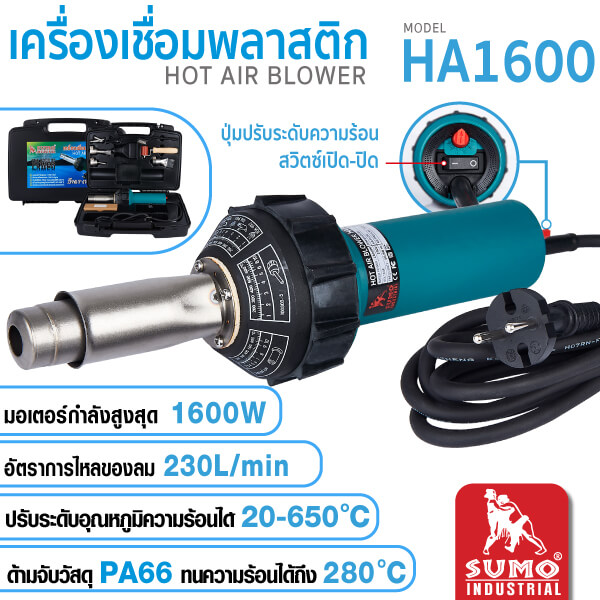

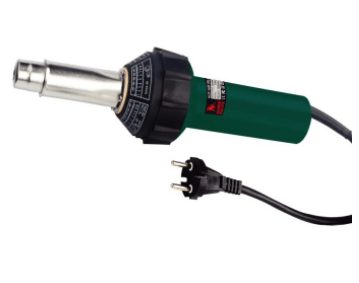

เครื่องเชื่อมพลาสติก รุ่น HA1600 SUMO

รายละเอียดสินค้า

ที่เชื่อมพลาสติก มอเตอร์กำลังสูงสุด 1600 วัตต์

อัตราการไหลของลม 230 L/min

  • ปรับระดับอุณหภูมิความร้อนได้ 20-650 องศาเซลเซียส
  • ใช้ในการเชื่อมเมมเบรนกันน้ำ ท่อ ชิ้นส่วนอิเล็กทรอนิกส์ และกันชนรถยนต์ เป็นต้น
  • ด้ามจับใช้วัสดุ PA66 ทนความร้อนได้ถึง 280 องศาเซลเซียส
  • กระจายความร้อนได้ดี ไม่ร้อนแม้ใช้เครื่องเป็นเวลานาน
  • เหมาะสำหรับการบัดกรีบนพื้นผิวและชิ้นส่วนที่ทำซ้ำ

คุณสมบัติ (Feature)

  • เครื่องเชื่อมพลาสติก ที่เชื่อมพลาสติก มอเตอร์กำลังสูงสุด 1600 วัตต์
  • ปรับระดับอุณหภูมิความร้อนได้ 20-650 องศาเซลเซียส
  • อัตราการไหลของลม 230 L/min
  • ด้ามจับใช้วัสดุ PA66 ทนความร้อนได้ถึง 280 องศาเซลเซียส
  • กระจายความร้อนได้ดี ไม่ร้อนแม้ใช้เครื่องเป็นเวลานาน
  • เหมาะสำหรับการบัดกรีบนพื้นผิวและชิ้นส่วนที่ทำซ้ำ
  • ใช้ในการเชื่อมเมมเบรนกันน้ำ ท่อ ชิ้นส่วนอิเล็กทรอนิกส์ และกันชนรถยนต์ เป็นต้น

  • Rated input power 1600W.
  • Adjust the heat temperature 20-650 degrees Celsius.
  • Air flow rate 230 L/min
  • The handle uses PA 66 material, resist 280 degrees Celsius.
  • Strong heat dissipation, no heat even if the machine is used for a long time.
  • Suitable for most surface mount soldering and rework parts
  • used in the welding of waterproof membrane, pipe, electronic components and automobile bumper etc.

วิธีใช้งาน (How to Use)

  • การเชื่อมวัสดุเทอร์โมพลาสติกเช่นเดียวกับพลาสติกยืดหยุ่นชั้นเดียวและน้ำมันดินดัดแปลงในรูปแบบของบอร์ด เยื่อบุวัสดุเคลือบ ฟิล์ม กระเบื้องและแผ่น สามารถทำได้ตามขั้นตอนต่อไปนี้ การเชื่อมแบบทับซ้อน การเชื่อมด้วยแกน และการเชื่อมแบบหลอมละลาย
  • ทำความร้อนสำหรับการขึ้นรูป การดัด และการปิดผนึกของวัสดุกึ่งสำเร็จรูปเทอร์โมพลาสติก และเม็ดพลาสติก
  • การหดตัวของปลอกหดความร้อน ฟิล์ม เทป และปลอกหุ้มหัวแร้ง
  • ละลายน้ำแข็ง ท่อน้ำแช่แข็ง
  • จุดไฟ เศษไม้ กระดาษ ถ่านหินหรือฟางในเตาเผา

  • Welding of thermoplastic materials as well as single-ply flexible plastics and modified bitumen in the form of boards, lining membranes, films, tiles and sheets. The following procedures are possible: overlap welding, welding with rod and melt welding.
  • Heating-up for forming, bending and sealing of thermoplastic semi-finished materials and plastic granules.
  • Soldering of copper pipes, solder joints and metal foils.
  • Defrosting of frozen water pipes.
  • Igniting of wood shavings, paper, coal or straw in furnaces.

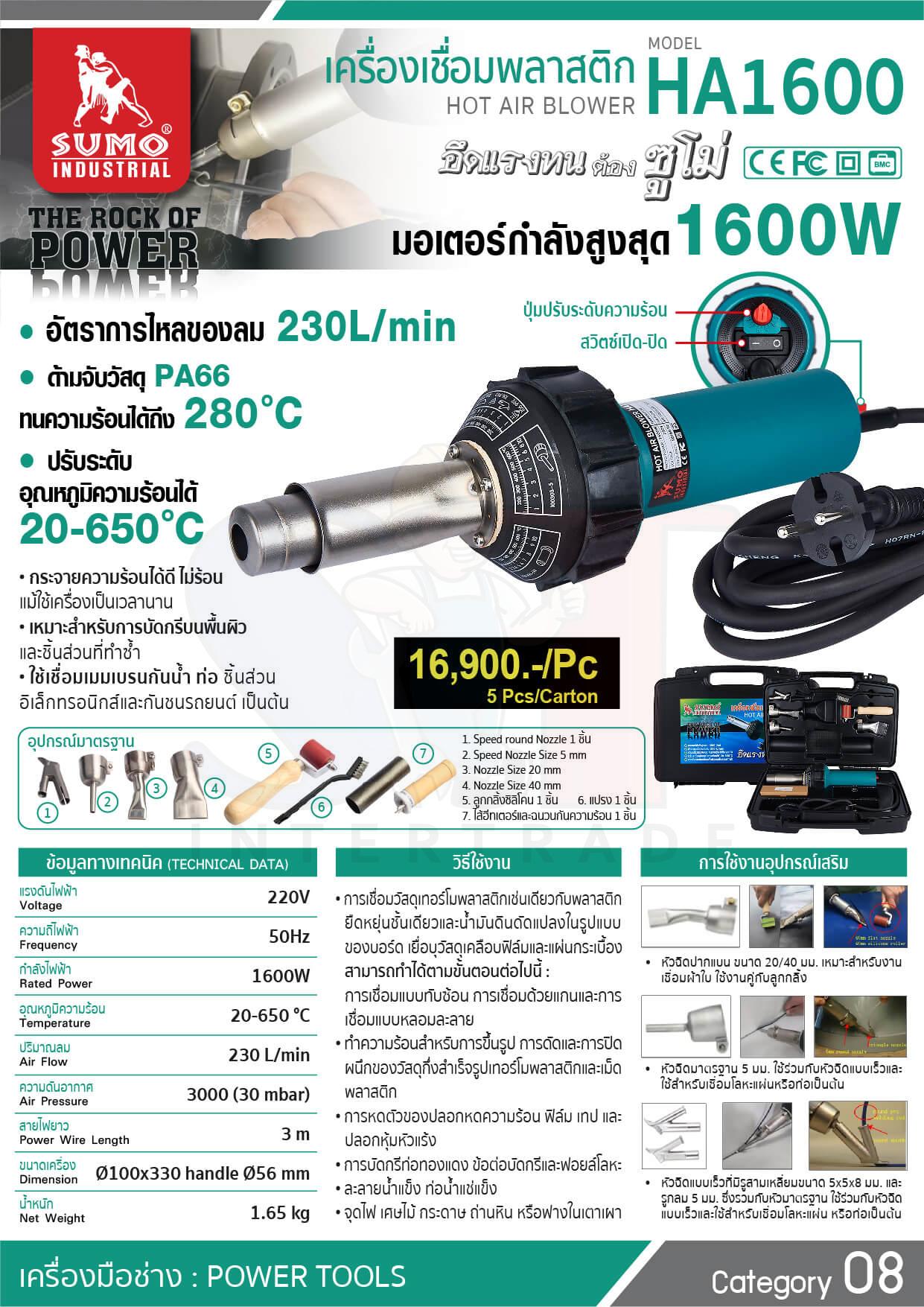

ข้อมูลทางเทคนิค (Technical data)

Rated Power 1600W
Voltage 230V
Frequency 50/60 Hz
Temperature 20-650 °C
Air Flow 230 L/min
Air pressure 3000 (30 mbar)
Power wire length 3.0m
Size Ø100×330 handle Ø56
Weight (G.W./N.W.) 1.65/1.3 kg
Carton size 61x44x39 Cm.
Package 5 Pcs/Ctn
Case size 45x36x17 Cm.

อุปกรณ์มาตราฐาน (Standard Accessories)

1. Speed round Nozzle 1 ชิ้น

2. Speed Nozzle Size 5 mm

3. Nozzle Size 20 mm

4. Nozzle Size 40 mm

5. ลูกกลิ้งซิลิโคน 1 ชิ้น

6. แปรง 1 ชิ้น

7. ไส้อีทเตอร์และฉนวนกันความร้อน 1 ชิ้น



ข้อแนะนำ (Suggestion)

  • อ่านคู่มือการใช้งานอย่างละเอียดก่อนใช้งานและเก็บไว้เพื่ออ้างอิงเพิ่มเติม
  • Read operating instructions carefully before use and keep it for further reference.

การดูแลรักษา (Maintenance)

  • ทำความสะอาดแผ่นกรองอากาศด้วยแปรงขนาดเล็กหรือเปลี่ยนใหม่
  • ทำความสะอาดหัวฉีดด้วยแปรงเหล็ก
  • Clean polluted air filter with a small brush or replace it.
  • Clean welding nozzle with a steel brush.



คำเตือน (Warning)

  • อันตราย โปรดระมัดระวังจากการเปิดฝาอุปกรณ์ลมร้อน ในขณะที่สียบปลั๊กหรืออุปกรณ์กำลังทำงานอยู่ ก่อนเปิดอุปกรณ์ควรดึงปลั๊กสายไฟออก เพื่อตัดกระแสไฟก่อนทุกครั้ง
  • การใช้เครื่องเป่าลมร้อนอย่างไม่ถูกต้องอาจทำให้เกิดไฟไหม้และการระเบิดได้ โดยเฉพาะอย่างยิ่งเมื่ออยู่ใกล้สารไวไฟหรือก๊าซที่ระเบิดได้
  • ไม่ควรสัมผัสส่วนที่ให้ความร้อน หัวจ่ายลม และพลาสติกในขณะที่ร้อนอยู่จะทำให้ผิวหนังไหม้ได้ ควรปล่อยให้เครื่องเย็นลง และอย่าหันอุปกรณ์ลมร้อนไปในทิศทางที่มีผู้คนหรือสัตว์อยู่ในบริเวณนั้น
  • Danger when opening up the tool, as live components and connections are exposed. Therefore, before opening it, Unplug the tool to ensure disconnection from the mains.
  • Incorrect use of hot air blowers can cause fire and explosion hazard, especially near combustible materials and explosive gases.
  • Do not touch the element housing and nozzle when they are hot as they can cause burns. Let the tool cool down. Do not point hot air flow in the direction of people or animals.

ข้อควรระวัง (Caution)

  • แรงดันไฟฟ้าที่ระบุบนเครื่องมือต้องสอดคล้องกับแรงดันไฟฟ้าหลัก
  • เพื่อความปลอดภัยของผู้ใช้งานในพื้นที่ก่อสร้าง แนะนำให้เชื่อมต่อเครื่องมือกับ RCCB หรืออุปกรณ์ตัดกระแสไฟฟ้า เมื่อไฟฟ้ารั่ว
  • ควรใช้งานเครื่องในความดูแลอย่างระมัดระวัง เพราะความร้อนสามารถเป็นตัวการก่อให้วัสดุติดไฟได้ ดังนั้นผู้ใช้งานจึงควรมีความรู้และความชำนาญ ไม่อนุญาตให้เด็กใช้เครื่องนี้
  • หลีกเลี่ยงการโดนน้ำและความชื้น
  • The voltage rating stated on the tool must correspond to the mains voltage.
  • For personal protection on building sites we strongly recommend the tool be connected to a RCCB (Residual Current Circuit Breaker).
  • The tool should be operated with care. Because heat can lead to combustible materials. Therefore, used by qualified specialists or under their supervision. Children are not allowed to use this device.
  • Protect tool from damp and wet.
