รายละเอียดเพิ่มเติม

แปรงลวดกลมถักเปีย 4″x1/2″-16mm SUMO

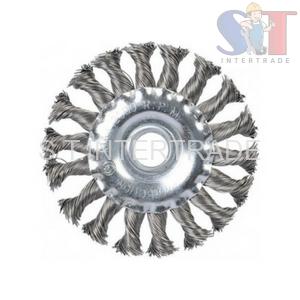

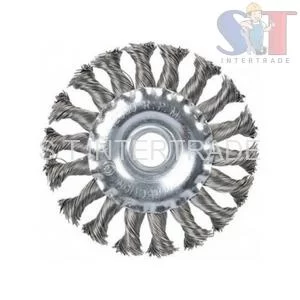

Twist knot wire wheel brush 4″x1/2″-16mm SUMO





ข้อมูลทางเทคนิค

  • เส้นลวดถักเปีย อายุการใช้งานยาวนาน ขัดกินชิ้นงานได้เร็ว
  • ใช้กับงานที่มีพื้นที่แคบ เข้าถึงได้ยาก
  • ออกแบบมาเพื่อการใช้งานกับเครื่องมือไฟฟ้าแบบพกพา เช่น เครื่องเจียร

Technical Information

  • The twist knot wire allows :

> Long working life, High removal capacity

> Comfortable use and less operat or fatigue

> Possibility of working at high speed

  • Special design allowing access to angles and flexible performance on any surface

การใช้งาน

  • ใช้สำหรับงานที่ขัดออกยาก เช่น งานลบคลีบ คราบสนิม สี หรือสิ่งสกปรกต่างๆ
  • ขัดลบสะเก็ดบนแนวเชื่อมในงานต่อเอ งานท่อน้ำมัน โครงสร้างที่มีแนวเชื่อม

Application

  • For heavy-duty cleaning of welding and forge scale
  • Removal of rust deburring, scale, paint or other adherences on flat or irregular surface
  • Weld cleaning at the tube joins in pipelines
  • For continuous and frequent brushing process

ข้อแนะนำ

  • ใช้แรงกดแปรงให้เหมาะสม เพื่อให้ปลายเส้นลวดสัมผัสกับชิ้นงานพอดี

  • ควรใช้งานตามความเร็วรอบต่อนาที (RPM) ที่แนะนำ

Suggestion

  • Use the appropriate pressing force of the wirebrush to make the tips of the wire contact exactly on the workpiece
  • Do not exceed maximum safe free speed (Max.RPM) under any circumstances



วีดีโอตัวอย่าง

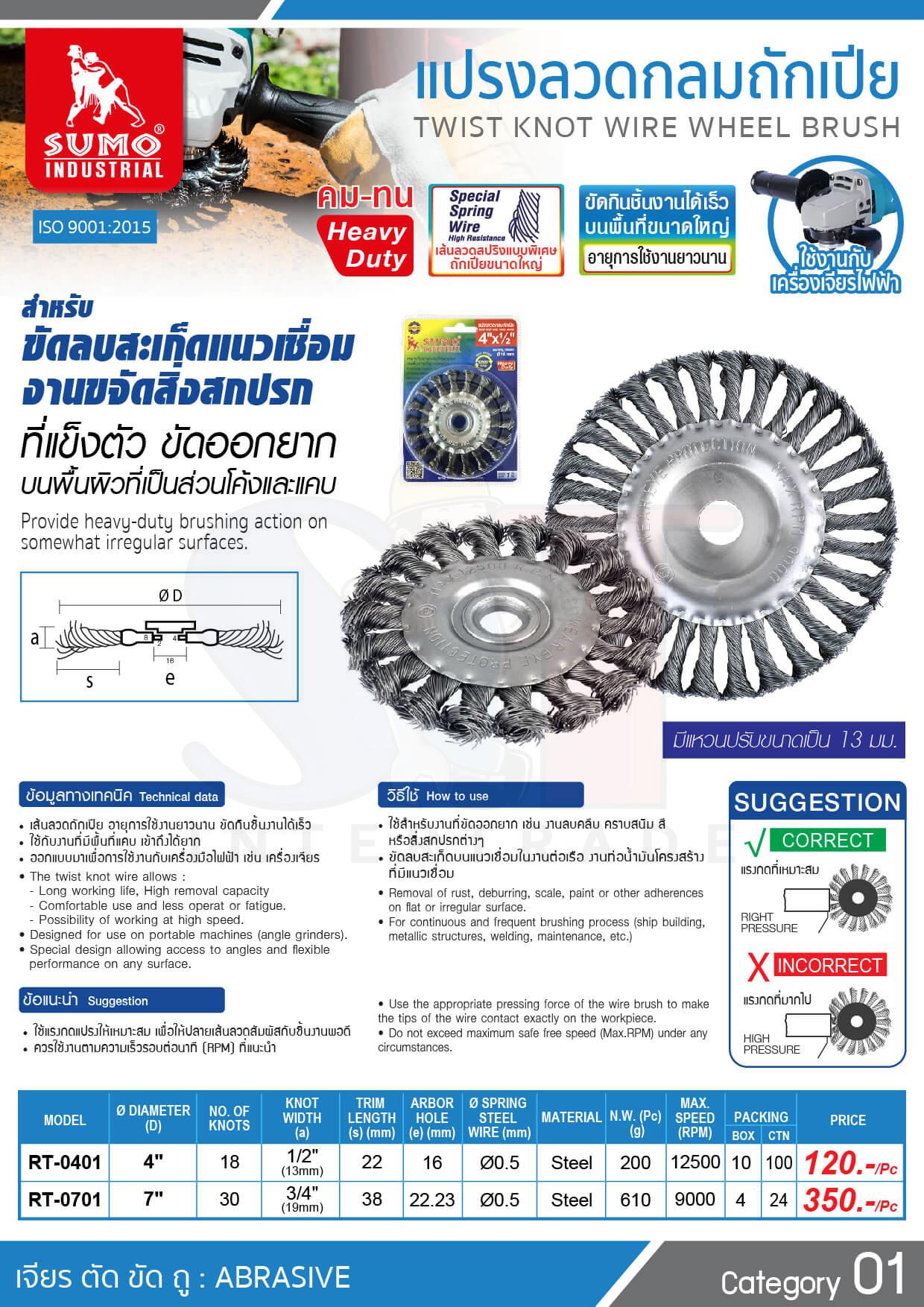

รายละเอียด : Specification

Ø Diameter (D)
4″
No. of knots
18
Knot Width (a)
1/2″
Trim Length (s)
22
Arbor Hole (e)
16 mm
Ø Spring Steel Wire
Ø 0.5
Material
Steel
MAX.SPEED
12500 RPM
