รายละเอียดเพิ่มเติม

แปรงลวดกลม 6″x3/4″x5/8″-1/2″ Heavy Duty

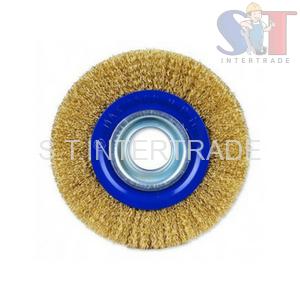

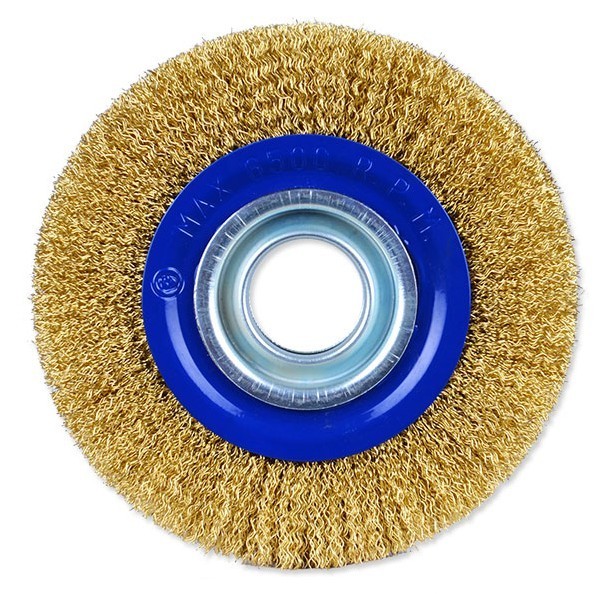

Crimped Wire Wheel Brush 6″x3/4″x5/8″-1/2″ Heavy Duty

ข้อมูลทางเทคนิค

  • เคลือบไททาเนียมสีทอง เพิ่มความแข็งแกร่งและเหนียว ลดการสึกกร่อน
  • ออกแบบพิเศษเพื่อการใช้งานกับเครื่องมอเตอร์หินไฟขน 5 นิ้ว และมีแกนพลาสติดช่วยปรับขนาดรูให้สามารถใช้กับเครื่องเจียร 4 นิ้วได้ รองรับความหนาและขนาดเพลาของแปรงลวดได้หลายขนาด
  • เหมาะสำหรับงานระดับเบาถึงปานกลาง

Technical Information

  • Titanium coated resists wear for longer life.
  • Crimped Wire Wheel Brush designed for bench grinder can be mounted on a shaft.
  • Available in a wide variety of diameters, face widths, arbor holes.

การใช้งาน

  • งานลบคลีบ
  • ปรับผิวชิ้นงานให้กลับสู่สภาพเดิม
  • กำจัดคราบสนิม สี สิ่งสกปรก และอื่นๆ
  • ทำความสะอาดและตกแต่งชิ้นงาน สำหรับโลหะ หนัง พลาสติก ไม้ แก้ว และอื่นๆ

Application

  • Light deburring
  • Tire recovery
  • Surface processing in rubber, plastic, glass, etc.
  • Removal of rust, paint, scale on metal or wooden surfaces.

ข้อแนะนำ

  • ก่อนการใช้งานต้องหมุนแปรงด้วยความเร็วมือเป็นเวลาอย่างน้อย 30 วินาที เพื่อให้เส้นลวดยืดคลาย และเรียงตัวให้หน้าสัมผัสเรียบเท่ากัน จะได้ประสิทธิภาพในการใช้งานสูงสุด และเพื่อให้สิ่งสกปรกที่ติดอยู่หลุดออกไปด้วย
  • ใช้แรงกดแปรงให้เหมาะสม เพื่อให้ปลายเส้นลวดสัมผัสกับชิ้นงานพอดี

  • ควรใช้งานตามความเร็วรอบต่อนาที (RPM) ที่แนะนำ

Suggestion

  • Before using the wirebrush, spin it very fast at least for 30 minutes in order to get wires in the equal order and the ultimate effective sanitation
  • Use the appropriate pressing force of the wirebrush to make the tips of the wire contact exactly on the workpiece
  • Do not exceed maximum safe free speed (Max.RPM) under any circumstances



รายละเอียด : Specification

Ø Diameter (D)
6″
Face Width (a)
3/4″
Trim Length (S)
29 mm
Arbor Hole (e)
32 mm
Ø Spring Steel Wire
Ø 0.3
Material
Steel
MAX.SPEED
6500 RPM
