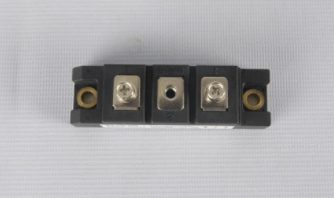

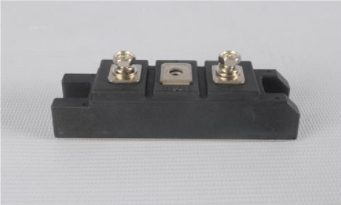

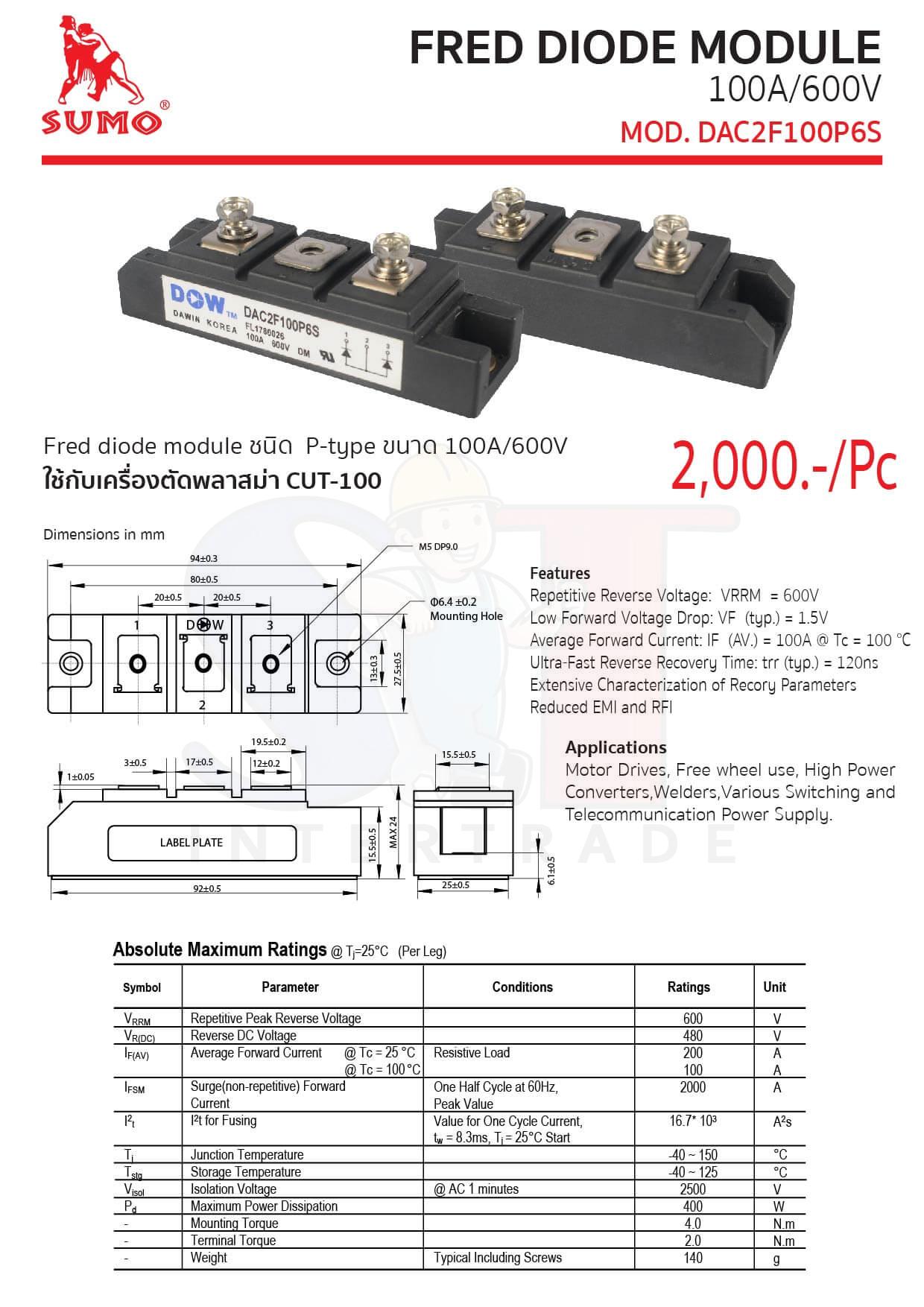

FRED DIODE MODULE 100A600V รุ่น DAC2F100P6S

รายละเอียดสินค้า

ไดโอด Fred Diode module ชนิด  P-type ขนาด 100A600V

ใช้กับเครื่องตัดพลาสม่า CUT-100

Description

  • Ultra-FRD module devices are optimized to reduce lossesand EMI/RFI in high frequency power conditioning electrical systems.These diode modules are ideally suited for power converters,motors drives and other applications where switching lossesare significant portion of the total losses.

Features

  • Repetitive Reverse Voltage:  VRRM  = 600V
  • Low Forward Voltage Drop: VF  (typ.) = 1.5V
  • Average Forward Current: IF  (AV.) = 100A @ Tc = 100℃
  • Ultra-Fast Reverse Recovery Time: trr (typ.) = 120ns
  • Extensive Characterization of Recory Parameters
  • Reduced EMI and RFI

Applications

  • Motor Drives, Free wheel use, High Power Converters,Welders,Various Switching and Telecommunication Power Supply.

Ordering Information

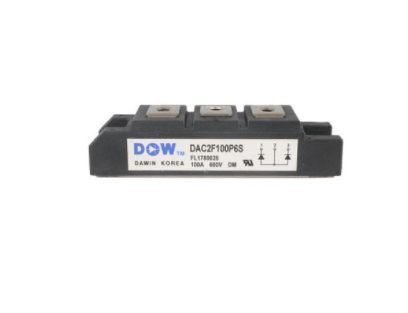

Device Name DAC2F100P6S
Optional Information Common Center & P-Type
